Electronic/Electrical Parts and Controll Equipments

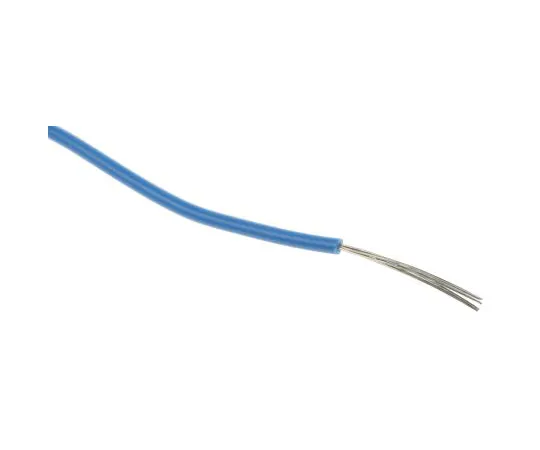

63-5156-38 RS PRO Blue Hook Up Wire UL3266, 0.33 mm², 300 V 22 AWG, 100m 872-5296
Product Description
Product Model: 63-5156-38Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5156-38
Product Brand: RS PRO
Features
- UL758, UL1581. Tags may indicate the following: 600 V peak - For electronic *** only. UL 3266. The UL3266 wire can be ***d for internal wiring of electrical and electronic equipment. 300 Voltage Stranded tinned copper conductor XLPE Material Various colours 28, 26 , 24, 22 AWG Flammability test - VW-1
Spec
- Quantity：1roll(100m)
- Cross Sectional Area : 0.33 mm²
- Sheath Colour : Blue
- American Wire Gauge : 22 AWG
- Core Strands : 17/0.16 mm
- Insulation Material : XLPE
- Outer Diameter : 1.58mm
- Length : 100m
- Voltage Rating : 300 V
- Conductor Material : Stranded Tinned Copper
- Wire Style : UL3266
- Maximum Operating Temperature : +125°C
- Minimum Operating Temperature : 0°C
- CODE No.:872-5296
