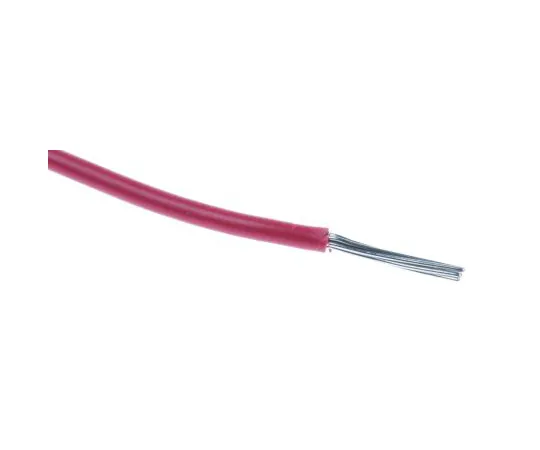

63-5156-17 RS PRO Red Hook Up Wire UL1015, 0.13 mm², 600 V 26 AWG, 100m 872-4593
Product Description
Product Model: 63-5156-17Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5156-17
Product Brand: RS PRO
Features
- UL758, UL1581, RoHS. Tags may also indicate the following: 2.500 V peak - for electronic *** only. RS UL1015 Hook-up Wire. The UL1015 Hook-up wire is designed for *** with internal wiring of electronic and electrical equipment.. Various colours 100m length PVC Material VW-1 Flammability test Stranded tinned copper conductor
Spec
- Quantity：1roll(100m)
- Cross Sectional Area : 0.13 mm²
- Sheath Colour : Red
- American Wire Gauge : 26 AWG
- Core Strands : 7/0.16 mm
- Insulation Material : PVC
- Outer Diameter : 2.1mm
- Length : 100m
- Voltage Rating : 600 V
- Conductor Material : Stranded Tinned Copper
- Wire Style : UL1015
- Maximum Operating Temperature : +105°C
- Insulation Wall Thickness : 0.8mm
- CODE No.:872-4593
