63-5155-85 RS PRO 4 wire PT100 Sensor, -100°C min +450°C max, 250mm Probe Length x 6mm Probe Diameter 872-2723
Product Description
Product Model: 63-5155-85Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5155-85
Product Brand: RS PRO
Features

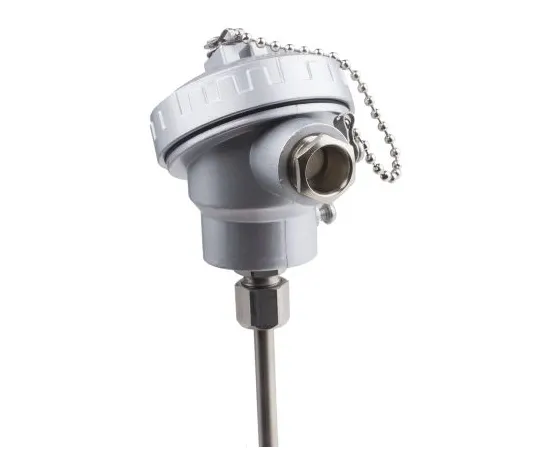

- PRT with Compact KNS Head. PT100 4 wire class B resistance thermometer with compact KNS head. Various probe available lengths 6mm diameter in 316 stainless steel IP67 aluminium alloy weatherproof connection head Sensor temperature rating from -100 ºC to + 450 ºC Conforms to IEC 751
Spec
- Quantity：1piece
- Sensor Type : PT100
- Probe Length : 250mm
- Probe Diameter : 6mm
- Minimum Temperature Sensed : -100°C
- Maximum Temperature Sensed : +450°C
- Termination Type : Connection Head
- Probe Material : Stainless Steel
- Process Connection : BSP 1/2
- Cable Entry Size : M16
- Number Of Wires : 4
- Accuracy : Class B
- CODE No.:872-2723
