63-5155-05 EPCOS 330 μH -30 → +50% Ferrite Common Mode Choke, Max SRF:100kHz, 2.6A Idc, 60mΩ Rdc B82730U B82730U3262A020
Product Description
Product Model: 63-5155-05Product Brand: EPCOS Features […]
Contact Us
Product Details
Product Model: 63-5155-05
Product Brand: EPCOS
Features
- Epcos B82730U Series Common Mode Chokes. B82730U Series, Current-compensated U-core double choke with a Ferrite core Closed PET coil former (UL 94 V-0) without encapsulation Creepage distances ≥4 mm. B82730U Series offers high Resonance Frequency Approx. 1.3% stray inductance for symmetrical interference suppression Low whirring noise Suitable for wave soldering Applications include Suppression of common-mode interferences; Compact switch-mode power applications; Electronic ballasts in lamps and for white goods applications
Spec
- Quantity：1bag(3pieces)
- Inductance : 330 μH
- Maximum DC Current : 2.6A
- Mounting Type : Radial
- Maximum DC Resistance : 60mΩ
- Tolerance : -30 → +50%
- Length : 16.5mm
- Depth : 11mm
- Height : 16.5mm
- Dimensions : 16.5 x 11 x 16.5mm
- Core Material : Ferrite
- Maximum Self Resonant Frequency : 100kHz
- Lead Pitch : 8mm
- Series : B82730U
- Terminal Type : PC Pin
- CODE No.:871-1461
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments
63-7322-52 Adaptaflex Straight Cable Conduit Fitting, Polyamide White 16mm nominal size IP65 M16 7TCA296140R0015 KF16/M16/A/W
model: 63-7322-52
brand: Adaptaflex
Electronic/Electrical Parts and Controll Equipments
63-4818-56 Vishay 5.6MΩ 0.25W Fixed Resistor ±5% ±200ppm/°C VR25000005604JA100
model: 63-4818-56
brand: Vishay
Electronic/Electrical Parts and Controll Equipments
63-7800-24 Artesyn Embedded Technologies 45W 1 Output Embedded Switch Mode Power Supply SMPS, 5A, 12V dc Medical Approved Open NPS43-M
model: 63-7800-24
brand: Artesyn Embedded Technologies
Electronic/Electrical Parts and Controll Equipments

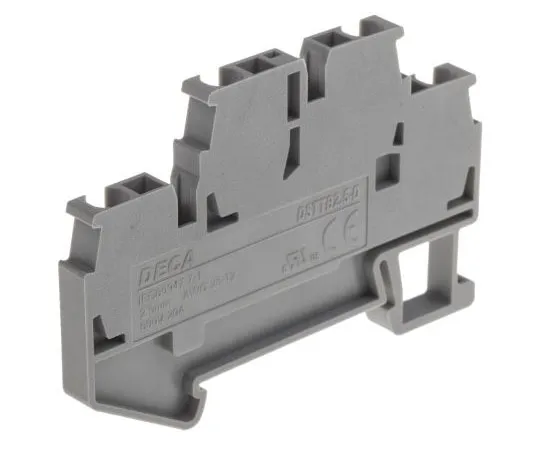

63-8076-86 RS PRO, 600 V Double Level Terminal Block 913-1276
