Electronic/Electrical Parts and Controll Equipments

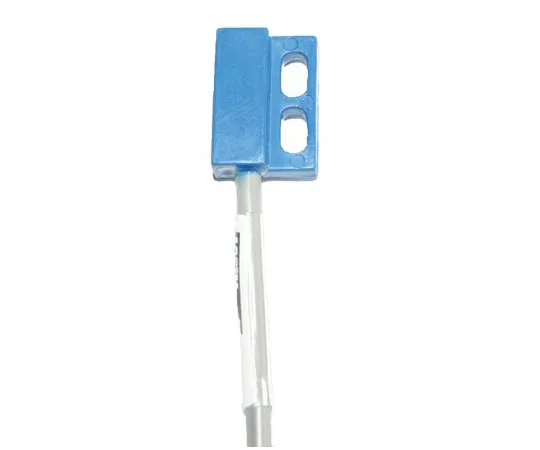

63-5154-01 Assemtech Reed Switch Rectangular 400V, NO, 500 mA MMPSA 240/30 LH NO BLUE
Product Description
Product Model: 63-5154-01Product Brand: Assemtech Featu […]
Contact Us
Product Details
Product Model: 63-5154-01
Product Brand: Assemtech
Features
- Assemtech Rectangular Proximity Reed Switches. This range of rectangular magnetic proximity reed switches from Assemtech are designed to provide a simple and cost effective solution to position or limit sensing applications. Reed switches are often employed to carry out such functions as linear actuator switches, security system switches and door switches. Moulded switch case with 2 slotted fixing holes Robust sealed switch Changeover version available
Spec
- Quantity：1piece
- Switch Shape : Rectangular
- Switch Type : Magnetic Proximity
- Pole and Throw Configuration : SPST
- Normal State Configuration : NO
- Terminal Type : Wire Lead
- Maximum Current : 500 mA
- Maximum AC Voltage : 400V
- Contact Resistance : 150mΩ
- Total Length : 320mm
- Length : 14mm
- Minimum Operating Temperature : -20°C
- CODE No.:866-2603
