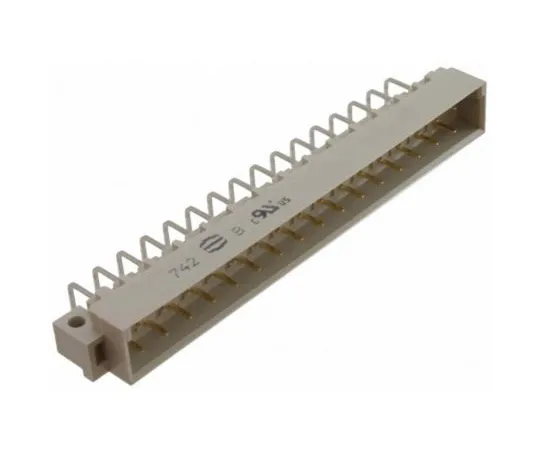

63-5153-69 Harting 09 04 Series 32 Way 5.08mm Pitch, Type D, 2 Row, Right Angle DIN 41612 Connector, Plug 9041327921
Product Description
Product Model: 63-5153-69Product Brand: HARTING Feature […]
Contact Us
Product Details
Product Model: 63-5153-69
Product Brand: HARTING
Features
- Harting DIN 41612 Type D Backplane Power Connectors. Harting DIN 41612 type D backapane power connectors are designed for various application areas that demand high power, such as power supply and railway transportation.Harting power connectors complying with DIN 41612 are robust and durable with a good mating life cycle for board to board connections. For female crimp contacts for female connector housing (stock number ; 740-6922 740-6922 ) see stock number ; 741-2924 741-2924 typically. Operating temp -55 to +125 °C 6A max per contact Contact resistance up to 15mΩ Thermoplastic resin - glass fibre filled Copper alloy contacts
Spec
- Quantity：1piece
- Number of Contacts : 32
- G***er : Male
- Number of Rows : 2
- Body Orientation : Right Angle
- Termination Method : Solder
- Row Loading : a/c
- Type : D
- Pitch : 5.08mm
- Contact Plating : Gold over Palladium Nickel over Nickel
- Current Rating : 6A
- Contact Material : Copper Alloy
- Maximum Contact Resistance : 15mΩ
- Minimum Operating Temperature : -55°C
- CODE No.:865-8082
