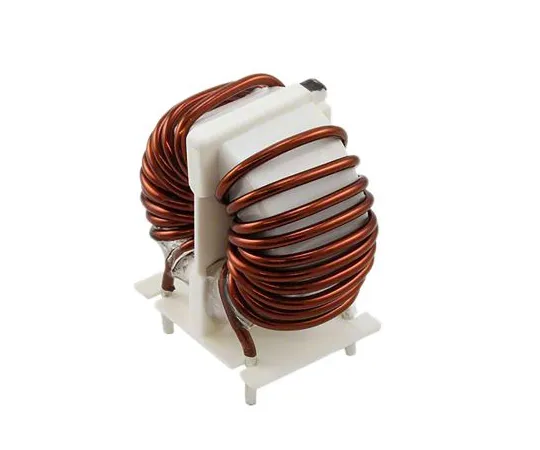

63-5152-86 500 μH KEMET SC Common mode filter SC-15-05J
Product Description
Product Model: 63-5152-86Product Brand: KEMET Features […]
Contact Us
Product Details
Product Model: 63-5152-86
Product Brand: KEMET
Features
- Kemet SC-J Series Terminal Base Type Common Mode Chokes. Kemet SC Coils, SC-J Terminal Base Type AC line filters, are suitable for *** as common mode chokes and in consumer electronics. A wide range of different sizes and specifications are available. Rated currents up to 18 A DC resistances as low as 7 mΩ Inductances up to 8 mH
Spec
- Quantity：1bag(5pieces)
- Inductance : 500 μH
- Series : SC
- DC Resistance : 8mΩ
- Maximum Current : 15 A
- Dimensions : 34 x 23 x 33mm
- Operating Temperature Range : -25 → +60 °C
- Mounting Type : Through Hole
- Height : 33mm
- CODE No.:863-3771
