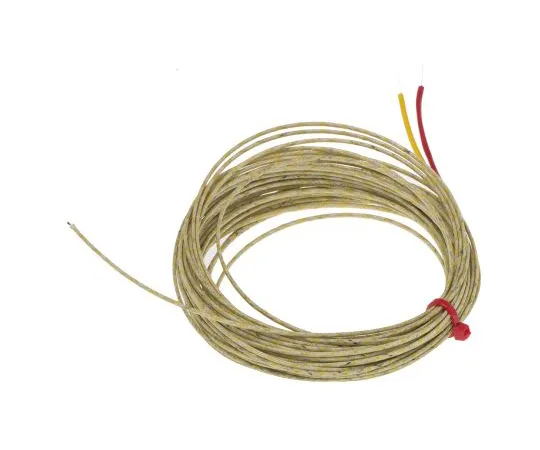

63-5146-77 RS PRO Type K Thermocouple 10m Length, 1/0.3mm Diameter, -75°C → +250°C 847-9732
Product Description
Product Model: 63-5146-77Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5146-77
Product Brand: RS PRO
Features
- Type K Glassfibre Exposed Welded Tip Thermocouples. Type K glassfibre exposed welded tip thermocouples with bare wire tails (ANSI MC96.1). Fast response, welded exposed junction 1, 2, 5 and 10 metre long glassfibre insulated flat pair cable Good temperature resistance (not suitable in fluids) 1/0.3mm conductors Temperature range: -60º C to +350º C (short periods up to 400º C) Ideal for test and development applications Thermocouples with "re-wireable" miniature flat pin plug available
Spec
- Quantity：1piece
- Thermocouple Type : K
- Probe Diameter : 1/0.3mm
- Probe Length : 10m
- Maximum Temperature Sensed : +250°C
- Termination Type : Cable
- Cable Length : 10m
- Standards Met : ANSI
- CODE No.:847-9732
