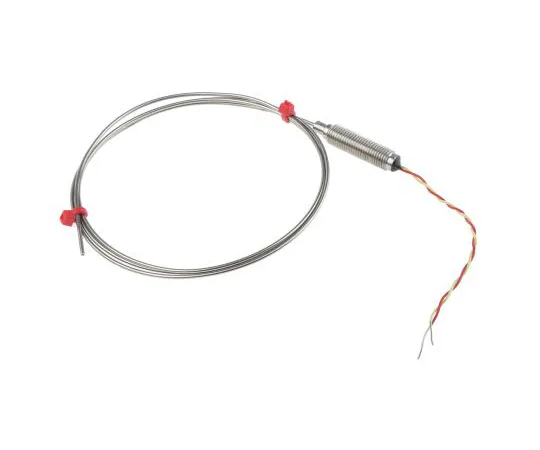

63-5146-29 RS PRO Type K Thermocouple 1m Length, 1.5mm Diameter, -100°C → 1100°C 847-1081
Product Description
Product Model: 63-5146-29Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5146-29
Product Brand: RS PRO
Features
- Type K Ind. Mineral Insulated Themocouples with Threaded Pot ; Tails. ANSI minteral insulated thermocouples with threaded pot and tails. 310 stainless steel or Inconel® Alloy 600 sheath Highly flexible, sheath can be bent/formed to suit many applications and processes Insulated hot junction Probe temperature range: -40 ºC to +1100 ºC M8 x 1.0mm fine pitch threaded pot seal (200 ºC) 100mm tails, PFA twin twisted 7/0.2mm, colour coded to ANSI MC96.1
Spec
- Quantity：1piece
- Thermocouple Type : K
- Probe Diameter : 1.5mm
- Probe Length : 1m
- Probe Material : Inconel
- Termination Type : Cable
- Cable Length : 100mm
- Standards Met : ANSI
- CODE No.:847-1081
