63-5145-64 Nichicon 2200μF 200V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 45mm +105°C 35mm 10mm LGW2D222MELC45
Product Description
Product Model: 63-5145-64Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5145-64
Product Brand: NICHICON
Features

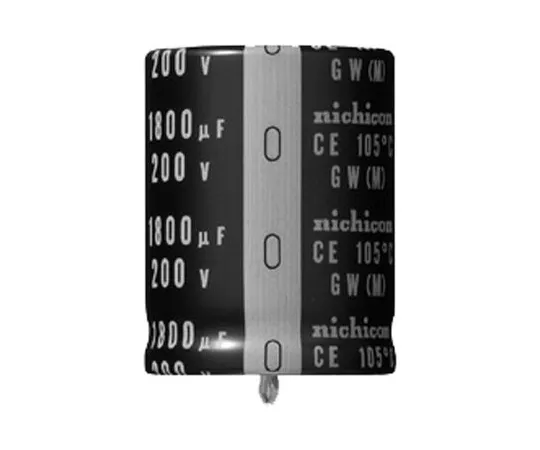

- Nichicon High Ripple Current Snap-In, GW Series. Nichicon GW Series Snap-In Aluminium Electrolytic Capacitors can withstand 3000 hours of rated ripple current application. The snap-in terminal GW Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 200 to 450V. These high performance capacitors have a wide temperature range which is ideal for applications such as uninterruptible power supplies, electric pump motors, and AC servomotors. Snap-In terminals Endurance rating ripple current 3000 hours guaranteed PET sleeve (non PVC) Lead-free terminal plating
Spec
- Quantity：1piece
- Capacitance : 2200µF
- Voltage : 200V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 35 (Dia.) x 45mm
- Height : 45mm
- Minimum Operating Temperature : -40°C
- Diameter : 35mm
- Maximum Operating Temperature : +105°C
- Lead Pitch : 10mm
- Series : GW
- Leakage Current : 1.98 mA
- CODE No.:846-7013
