Electronic/Electrical Parts and Controll Equipments

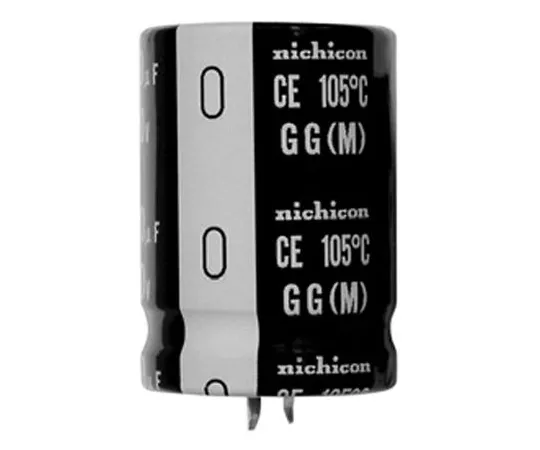

63-5145-38 Nichicon 680μF 400V dc Aluminium Electrolytic Capacitor, Through Hole 35 (Dia.) x 40mm +105°C 35mm 10mm LGG2G681MELC40
Product Description
Product Model: 63-5145-38Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5145-38
Product Brand: NICHICON
Features
- Nichicon Ultra-Small Snap-In, GG Series. Nichicon GG Series Snap-In Aluminium Electrolytic Capacitors can withstand 2000 hours of rated ripple current application The snap-in terminal GG Series Aluminium Electrolytic Capacitors from Nichicon offer a large capacitance range with voltages ranging from 160 to 450V These ultra-small–sized capacitors are suited for equipment down sizing. Snap-In terminals Endurance rating ripple current 2000 hours guaranteed PET sleeve (non PVC) Lead-free terminal plating
Spec
- Quantity：1piece
- Capacitance : 680µF
- Voltage : 400V dc
- Mounting Type : Through Hole
- Technology : Electrolytic
- Dimensions : 35 (Dia.) x 40mm
- Height : 40mm
- Minimum Operating Temperature : -25°C
- Diameter : 35mm
- Maximum Operating Temperature : +105°C
- Lifetime : 2000h
- Series : GG
- Leakage Current : 1.56 mA
- CODE No.:846-6830
