Electronic/Electrical Parts and Controll Equipments

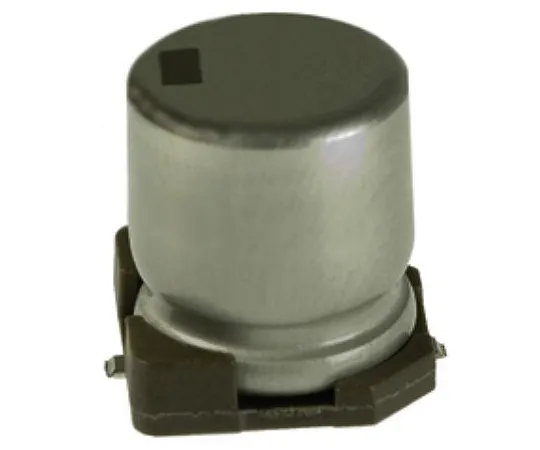

63-5143-85 Nichicon 220μF 16V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 7.7mm +105°C 6.3mm 2.2mm UWT1C221MCL1GS
Product Description
Product Model: 63-5143-85Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5143-85
Product Brand: NICHICON
Features
- Aluminium Electrolytic Capacitor, WT Series, 105°C. Chip type operating over wide temperature range of to –55 to +105°C. Rated Voltage Range of 4 to 50V Rated Capacitance Range of 0.1 to 1500μF Designed for surface mounting on high density PC board. Applicable to automatic mounting machine fed with carrier tape. Compliant to the RoHS directive (2011/65/EU). Lead-free version of WT series
Spec
- Quantity：1bag(25pieces)
- Capacitance : 220µF
- Voltage : 16V dc
- Mounting Type : Surface Mount
- Technology : Electrolytic
- Dimensions : 6.3 (Dia.) x 7.7mm
- Height : 7.7mm
- Minimum Operating Temperature : -55°C
- Diameter : 6.3mm
- Maximum Operating Temperature : +105°C
- Lead Pitch : 2.2mm
- Series : WT
- Ripple Current : 105mA
- CODE No.:844-0718
Related product recommendations
You may also be interested in the following products
Electronic/Electrical Parts and Controll Equipments

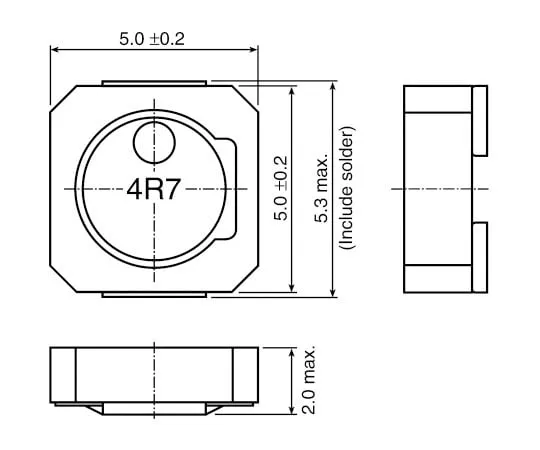

63-8118-97 TDK VLCF Series Shielded Wire-wound SMD Inductor 4.7 μH ±30% Wire-Wound 2.15A Idc VLCF5020T-4R7N1R4
