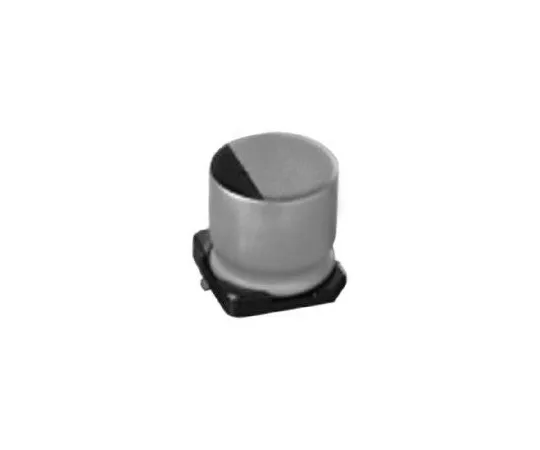

63-5143-41 Nichicon 100μF 35V dc Aluminium Electrolytic Capacitor, Surface Mount 6.3 (Dia.) x 5.8mm +105°C 6.3mm 2.2mm UCM1V101MCL1GS
Product Description
Product Model: 63-5143-41Product Brand: NICHICON Featur […]
Contact Us
Product Details
Product Model: 63-5143-41
Product Brand: NICHICON
Features
- Nichicon CM Series Low Impedance Capacitors. CM Aluminium Electrolytic Capacitor Chip type, low Impedance Series. Applications include power window switches and fuel pumps. Features ; Benefits:. Temperature range up to +105°C. Rated Voltage Range: 6.3 V to 50 V. Applicable to automatic mounting machine fed with carrier tape. Compliant to the RoHS directive (2011/65/EU)
Spec
- Quantity：1bag(5pieces)
- Capacitance : 100µF
- Voltage : 35V dc
- Mounting Type : Surface Mount
- Technology : Electrolytic
- Dimensions : 6.3 (Dia.) x 5.8mm
- Height : 5.8mm
- Minimum Operating Temperature : -55°C
- Diameter : 6.3mm
- Maximum Operating Temperature : +105°C
- Lifetime : 2000h
- Series : CM
- Leakage Current : ≤0.01 CV (After 2 min) μA
- CODE No.:843-2187
