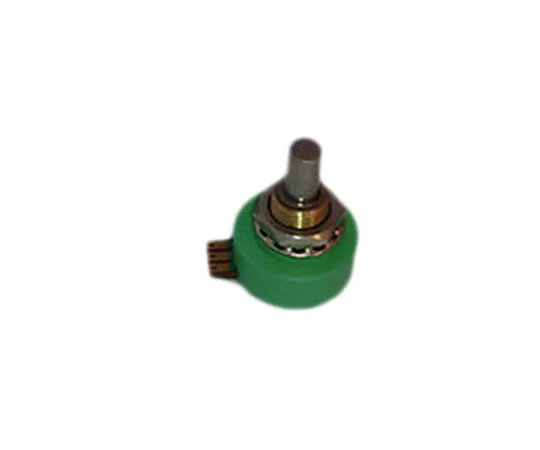

63-5142-63 RS Pro 1 Gang Rotary Conductive Plastic Potentiometer with a 6 mm Dia. Shaft, 1kΩ, ±20%, 1W, Linear 842-7138
Electronic/Electrical Parts and Controll Equipments

63-5142-63 RS Pro 1 Gang Rotary Conductive Plastic Potentiometer with a 6 mm Dia. Shaft, 1kΩ, ±20%, 1W, Linear 842-7138

model: 63-5142-63
brand: RS PRO

Product Description

Product Model: 63-5142-63Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5142-63
Product Brand: RS PRO

Features

  • RS NP21 Series Conductive Plastic Potentiometers. This series of RS Pro potentiometers provide a resistance range of 500 Ω to 100 kΩ and are constructed from a long life conductive plastic resistance element. These potentiometers offer noise free output due to a precious metal wiper. Features and Benefits:. 320° electrical angle 1 W power rating at 70°C Rotational life of 4000000 shaft revolutions ±20% resistance tolerance

Spec

  • Quantity:1piece
  • Potentiometer Type : Rotary
  • Maximum Resistance : 1kΩ
  • Number of Gangs : 1
  • Power Rating : 1W
  • Electrical Taper : Linear
  • Element Material : Conductive Plastic
  • Mounting Type : Panel Mount
  • Termination Style : Solder
  • Shaft Length : 18mm
  • Shaft Diameter : 6 mm
  • Tolerance : ±20%
  • Actuator Type : Slotted Shaft
  • CODE No.:842-7138
