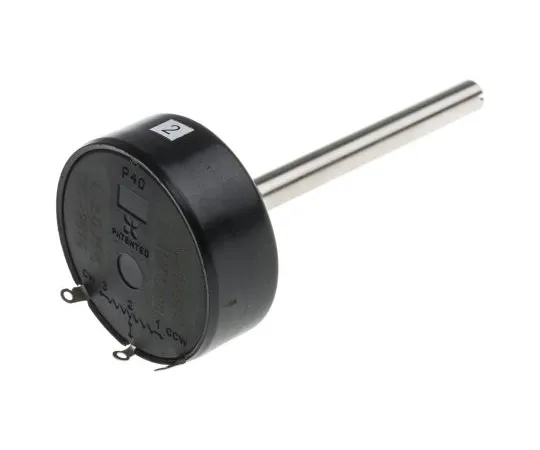

63-5142-43 RS Pro 1 Gang Rotary Wirewound Potentiometer with a 6.35 mm Dia. Shaft, 10kΩ, ±10%, 3W, Linear 842-7006
Product Description
Product Model: 63-5142-43Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5142-43
Product Brand: RS PRO
Features
- RS 40mm Wirewound Potentiometers. This series of RS potentiometers offer a range of resistance options between 100Ω and 10kΩ. They are single turn wirewound potentiometers with a 6mm diameter shaft and a rotational life of 100,000 revolutions. ±10% standard resistance tolerance 285° rotation (mechanical angle) 3W power rating
Spec
- Quantity：1piece
- Potentiometer Type : Rotary
- Maximum Resistance : 10kΩ
- Number of Gangs : 1
- Number of Turns : 1
- Power Rating : 3W
- Electrical Taper : Linear
- Element Material : Wirewound
- Mounting Type : Panel Mount
- Termination Style : Solder
- Shaft Length : 68mm
- Shaft Diameter : 6.35 mm
- Tolerance : ±10%
- Actuator Type : Slotted Shaft
- CODE No.:842-7006
