Features

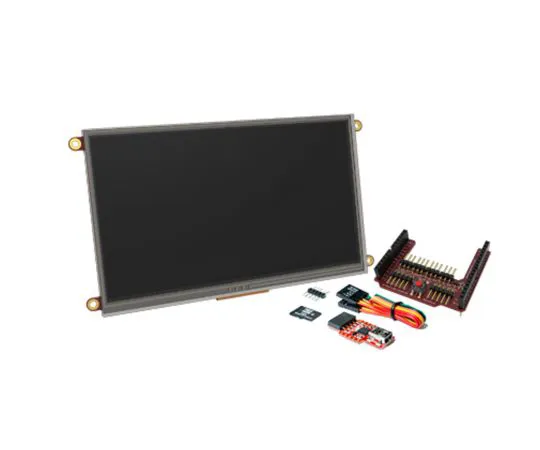

• Arduino MCU module is not included. For new designs the 4D Systems gen4 range of LCD displays should be considered, including: gen4-uLCD-24DT (RS part ; 1257941 1257941 ) gen4-uLCD-28DT (RS part ; 1257942 1257942 ) gen4-uLCD-32DT (RS part ; 1257943 1257943 ) gen4-uLCD-43DT (RS part ; 1257947 1257947 ). 4D Systems Resistive Touch LCD Starter Kits with DIABLO16 Processor for Use with Arduino. The range of resistive touch LCD starter kits for Arduino available from 4D Systems provide everything needed by a ***r to easily interface between an Arduino (using its serial port + one GPIO pin) and the resistive touch LCD module, eliminating wiring headaches. The ***r can then quickly begin programming the 4D Systems display module through the Arduino. This display is a secondary display and does not replace the monitor or TV ***d to program the Arduino itself. Powered from the Arduino the display module DIABLO16 processor can be programmed and configured using 4D Systems ‘ Workshop4 IDE software (see datasheet for download instruction). The resistive touch LCD module is set up to receive a wide range of serial commands from the Arduino, for example, to display shapes, text, images, to play sounds and log data to the microSD card. Features. DIABLO16 processor Built-in extensive 4DGL graphics and system library functions Flash memory for ***r code Audio amplifier and loudspeaker microSD card socket 16 x GPIO pins I2C, SPI and UART communications Powered from Arduino. Kit Contents. LCD resistive touch module uUSB-PA5 programming adaptor 4D Arduino adapter shield 4GB microSD card Female to female 150mm 5-way jumper cable 5 way male to male adapter Quick start ***r guide
