Features

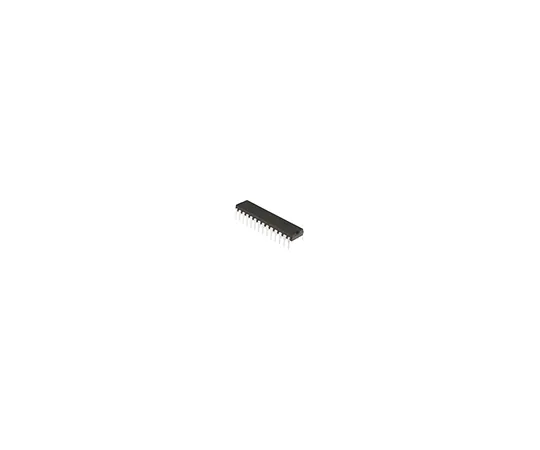

• PIC24FJxxxGB202/204 16-Bit Flash Microcontrollers. The PIC24FJxxxGB202/204 family of microcontrollers from Microchip is a range of 16-bit MCUs based upon the PIC24F core, offering up to 16MIPS performance. Key features of these devices include an on-board Cryptographic Engine plus USB On-the-Go and Extreme Low-Power technologies. Microcontroller Features. 32 MHz Max. CPU Speed 20 or 34 I/O Pins – Model Dep***ant 8 MHz Internal Oscillator Extreme Low-Power (XLP) Technology Power-On Reset (POR) Power-Up Timer (PWRT) Oscillator Start-Up Timer (OST) Brown-Out Reset (BOR) and Deep Sleep Brown-Out (DSBOR) Ext***ed Watchdog Timer (WDT) and Ultra Low-power Watchdog Timers (ULPW) High/Low-Voltage Detection (HLVD) Module In-Circuit Serial Programming (ICSP) and In-Circuit Emulation (ICE). Peripherals. Cryptographic Engine USB Module – USB On-the-Go Compliant 10/12-Bit 12-Channel Analogue-to-Digital Converter Three Comparators Five 16-Bit Timers/Counters Three Voltage References Charge Time Measurement Unit (CTMU) Six Input Capture Modules Six Output Compare/PWM Modules Programmable 32-Bit Cyclic Redundancy Check (CRC) Digital Signal Modulator – Provides FSK & PSK Modulation Hardware Real-Time Clock/Cal***ar (RTCC) Six-Channel Direct Memory Access (DMA) Three SPI Modules Two I2C Modules Four UART Modules – Two Supporting Smart Card ISO 7816
