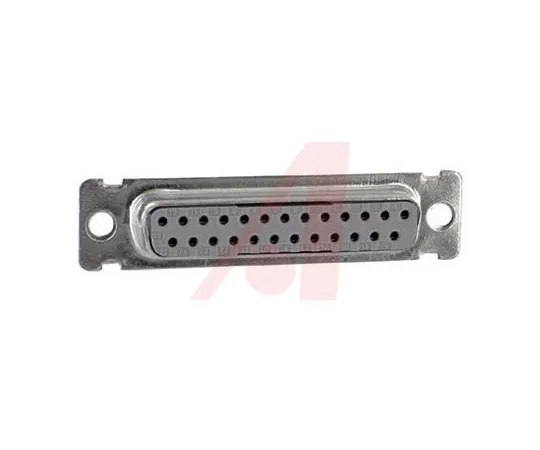

63-5138-51 3M 8300 Series 1.27mm Pitch 25 Way IDC D-sub Connector, Socket, PBT Shell 8325-6000
Product Description
Product Model: 63-5138-51Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-5138-51
Product Brand: 3M Company
Features
- Part No. XXXX-XXX0 with O3.05mm flange hole Part No. XXXX-XXX5 with #4-40 UNC thread flange Part No. XXXX-XXX9 with rivet crimped flange
- Class II D metal shell connector
- Class II compliant cable mounting D connector For superior ground tools with tin plating and dimpling, Part No.; 120-6962 120-6962 and; See 192-7748 192-7748 3M Color Cord Ribbon Cable (Part No.; 120-8485 120-8485) Connector Strain Relief Sold Separately (Part No.; 121-2822 121-2822)
Spec
- Quantity：1piece
- G***er : Female
- Number of Contacts : 25
- Body Orientation : Right Angle
- Pitch : 1.27mm
- Contact Material : Copper Alloy
- Contact Plating : Gold over Nickel
- Housing Material : PBT
- Current Rating : 1A
- Dimensions : 53 x 16.5 x 12.4mm
- Series : 8300
- Depth : 12.4mm
- Length : 53mm
- Minimum Operating Temperature : -55°C
- CODE No.:827-7542
