Features

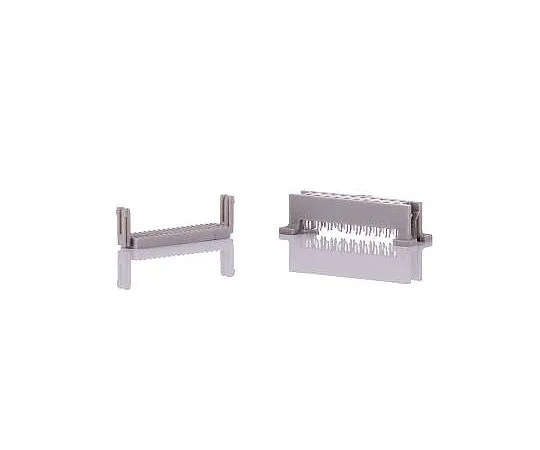

• Use with the 452 series board mount headers. Ribbon Cable Wire Mount Socket Assembly, 451 Series. The 451 series ribbon cable wire mount sockets are a new series that offers a robust connector in a very small package with various options. Fine pitch offers high connection density in a very small space. Optional friction latch configurations **** decrease accidental disconnection when using a box header. Further protection against damage ca***d by ***rs pulling on terminated cable can also be increased with the optional strain relief accessory. Current rating: 1.0 A (all lines energized), 1.5 A (6 lines energized), 2.5 A (1 line energized) Voltage rating: 125 V min Operating temperature: -65 to +105 °C Processing temperature: 260 °C Lead-Free Solderable: Yes
