Electronic/Electrical Parts and Controll Equipments

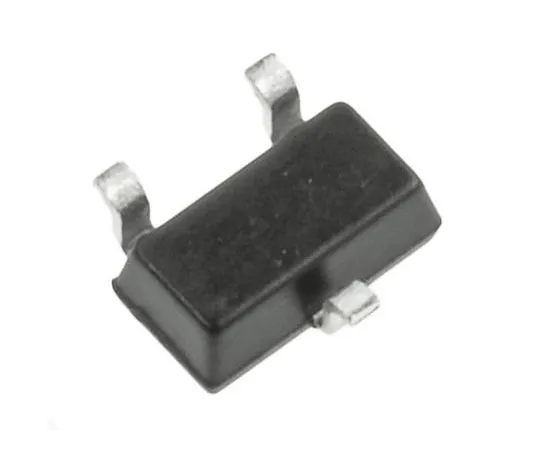

63-5138-05 ROHM 2SD1782KT146R NPN Bipolar Transistor, 500 mA, 80 V, 3-Pin SOT-346 2SD1782KT146R
Product Description
Product Model: 63-5138-05Product Brand: ROHM Features N […]
Contact Us
Product Details
Product Model: 63-5138-05
Product Brand: ROHM
Features
- NPN Small-Signal Transistor, Rohm
Spec
- Quantity：1bag(40pieces)
- Transistor Type : NPN
- Maximum DC Collector Current : 500 mA
- Maximum Collector Emitter Voltage : 80 V
- Package Type : SOT-346 (SC-59)
- Mounting Type : Surface Mount
- Maximum Power Dissipation : 200 mW
- Minimum DC Current Gain : 120
- Transistor Configuration : Single
- Maximum Collector Base Voltage : 80 V
- Maximum Emitter Base Voltage : 5 V
- Maximum Operating Frequency : 100 MHz
- Pin Count : 3
- Number of Elements per Chip : 1
- Maximum Operating Temperature : +150 °C
- CODE No.:826-8443
