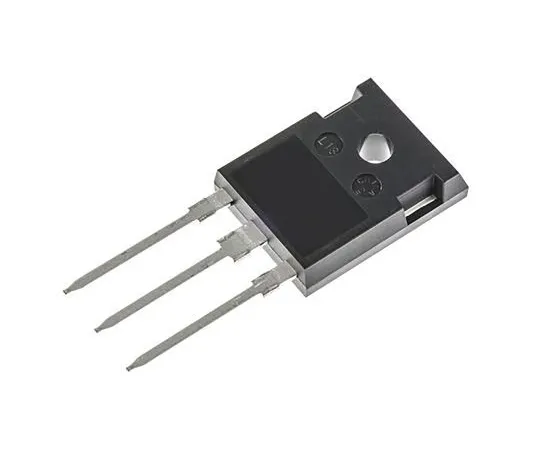

63-5137-90 Infineon IKW15N120H3FKSA1 IGBT, 30 A 1200 V, 3-Pin TO-247 IKW15N120H3FKSA1
Product Description
Product Model: 63-5137-90Product Brand: Infineon Featur […]
Contact Us
Product Details
Product Model: 63-5137-90
Product Brand: Infineon
Features
- Infineon TrenchStop IGBT Transistors, 1100 to 1600V. A range of IGBT Transistors from Infineon with collector-emitter voltage ratings of 1100 to 1600V featuring TrenchStop™ technology. The range includes devices with an integrated high speed, fast recovery anti-parallel diode. Collector-emitter voltage range 1100 to 1600V Very low VCEsat Low turn-off losses Short tail current Low EMI Maximum junction temperature 175°C
Spec
- Quantity：1bag(2pieces)
- Maximum Continuous Collector Current : 30 A
- Maximum Collector Emitter Voltage : 1200 V
- Maximum Gate Emitter Voltage : ±20V
- Maximum Power Dissipation : 217 W
- Package Type : TO-247
- Mounting Type : Through Hole
- Channel Type : N
- Pin Count : 3
- Transistor Configuration : Single
- Length : 16.03mm
- Width : 5.16mm
- Height : 21.1mm
- Dimensions : 16.03 x 5.16 x 21.1mm
- Minimum Operating Temperature : -40 °C
- CODE No.:826-8223
