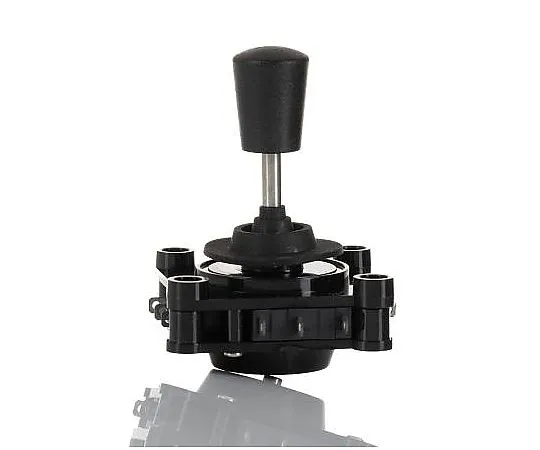

63-5136-96 IP65 Joystick Switch, 2 axes, 5 A@ 250 V ac Quick Connect 250V ac, -20 → +65°C 825-2583
Product Description
Product Model: 63-5136-96Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5136-96
Product Brand: RS PRO
Features
- RS Panel Mount Joystick. Panel mount Joysticks that are ideal in areas where there is potential for dirt and water contamination. The joysticks are rated to IP65 (above panel) with a life expectancy of up to 200,000 operations. The micro switches are rated to 5 A @ 250 V ac and the push button switch if fitted carries a rating of 0.1 A @ 50 V dc. 2 axis with spring return and open square gate X and Y control range: Approx 20°
Spec
- Quantity：1piece
- Number of Axes : 2
- Switch Technology : Spring Return
- IP Rating : IP65
- Handle Type : Knob
- Contact Voltage Rating : 250V ac
- Contact Current Rating : 5 A@ 250 V ac
- Joystick Travel : ±12 °
- Terminal Type : Quick Connect
- Mechanical Life : 200000Operations
- Depth Behind Panel : 21.5mm
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +65°C
- Operating Temperature Range : -20 → +65°C
- CODE No.:825-2583
