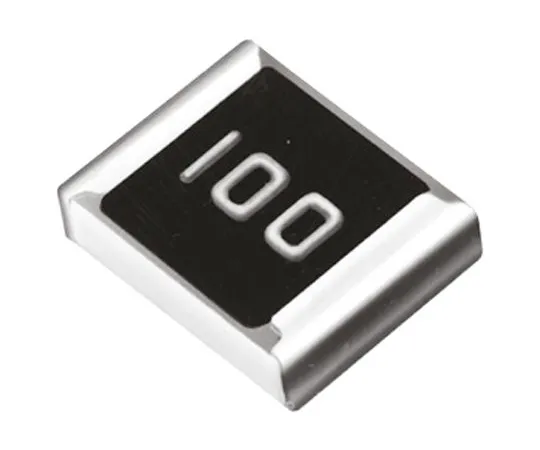

63-5136-26 2mΩ 2512 Metal Strip Current Sensing Surface Mount Fixed Resistor ±1% 2W - CRE2512-FZ-R002E-2 CRE2512-FZ-R002E-2
Product Description
Product Model: 63-5136-26Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5136-26
Product Brand: Bourns
Features
- AEC-Q200 qualified. CRE Series 2512 Format - High Power Current Sense. CRE2512 series high-power current sense resistors are constructed from Mn/Cu alloy. This series is available with a power rating of either 2 W or 3 W at 70°C. CRE2512 high-power resistors feature low EMF and inductance values less than 5 nF. Product Application Information. CRE2512 power resistors are AEC-Q200 qualified and are suitable for automotive applications. This series is suitable for *** in input amplifiers, power suppliers and stepper motor drives. Other suitable applications include white goods and battery packs.
Spec
- Quantity：1bag(10pieces)
- Resistance : 2mΩ
- Technology : Metal Strip
- Package/Case : 2512 (6432M)
- Tolerance : ±1%
- Power Rating : 2W
- Temperature Coefficient : ±75ppm/°C
- Automotive Standard : AEC-Q200
- Series : CRE
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +170°C
- CODE No.:824-0307
