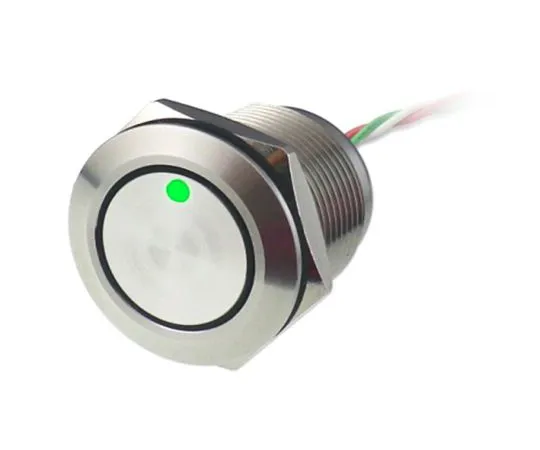

63-5135-67 Push Button Touch Switch, Latching, NO ,Illuminated, Green, Red, IP68 Brass, 5 → 30V dc 823-2801
Product Description
Product Model: 63-5135-67Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5135-67
Product Brand: RS PRO
Features
- 19mm Touch Switches IP68. Touch switches from RS that are available in various colours and illumination options. An auto calibration function ensures the switch adapts to changing environments. Ideal for the food and medical industry as a gloved hand will activate the switch.The impact resistance is rated at IK02 for the switch face ( PC ) plastic parts and IK10 for metal face parts. Wire length: 300 mm Electrical life: 1000000 cycles at full load UV resistance: UVA / UVB
Spec
- Quantity：1piece
- Switch Type : Push Button
- Switch Operation : Latching
- Switch Function : NO
- Minimum Input Voltage : 5V dc
- Maximum Input Voltage : 30V dc
- Illuminated : Yes
- LED Colour : Green, Red
- IP Rating : IP68
- Contact Material : Brass
- Current Rating : 1.5 A @ 30 V dc
- CODE No.:823-2801
