Features

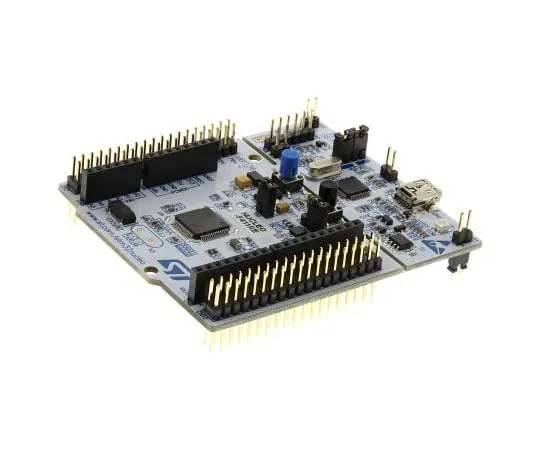

• NUCLEO-F411RE Nucleo-64 Development Board. STMicroelectronics NUCLEO-F411RE Development Board enables you to build and evaluate your own prototype with the STM32 F4 family of high performance microcontrollers in an embedded application. A simple to *** development platform that can offer a quick solution in evaluating and developing with any ARM Cortex-M4 processor STM32 F4 32-bit flash microcontrollers in the LQFP64 package. The Nucleo development board connects with the Arduino and supports most shields. Also the ST Morpho headers **** increase the functionality of the Nucleo open development platform (ODP). The ARM mbed enabled board has an integrated ST-Link/V2 circuit debugger and programmer (SWIM/SWD) and interfaces with the on board STM32F411RET6 or with a suitable STM32 MCU in your application. What ‘s on-board? STM32 Nucleo development board with STM32F411RET6 MCU 512 KB flash memory Arduino Uno Revision 3 connectivity STMicroelectronics Morpho connection Debugger/programmer ST-LINK/V2-1 with SWD connector Selection mode switch to *** the kit as a standalone ST-LINK/V2-1 Power supplies: USB VBUS or external source (3.3 V, 5 V, 7 V to 12 V) Three LEDs: USB communication; ***r; power Push button: User and Reset Interfaces supported on USB: Virtual Com port; Mass storage; Debug port STM32 online software HAL library Integrated Development Environments (IDEs) support includes IAR, Keil, GCC-based IDEs System requirements: Windows PC (XP, Vista, 7, 8), USB type A to Mini-B USB cable
