63-5133-77 RS PRO 1NC Momentary Miniature Push Button Switch, IP67, 13.6 (Dia.)mm, Panel Mount, 30V dc 820-7587
Electronic/Electrical Parts and Controll Equipments

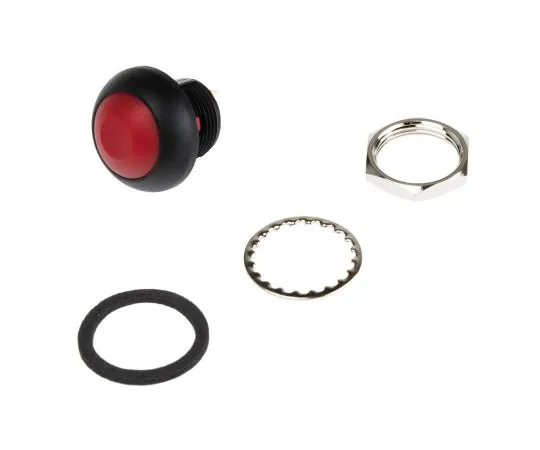

63-5133-77 RS PRO 1NC Momentary Miniature Push Button Switch, IP67, 13.6 (Dia.)mm, Panel Mount, 30V dc 820-7587

model: 63-5133-77
brand: RS PRO

Product Description

Product Model: 63-5133-77Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5133-77
Product Brand: RS PRO

Features

  • Sub-Miniature Push Button Switches. Push button switches available with threaded bushing or snap in panel mounting. Operating force: 2N - 5N Contact bounce: 10 ms Mechanical life: 1000000 cycles Soldering: 350°C maximum for 5 seconds

Spec

  • Quantity:1piece
  • Switch Operation : Momentary
  • Mounting Type : Panel Mount
  • Illuminated : No
  • Contact Configuration : 1NC
  • Panel Cut Out Size : 13.6 (Dia.)mm
  • Panel Cut Out Diameter : 13.6mm
  • IP Rating : IP67
  • Actuator Colour : Red
  • Voltage Rating : 30V dc
  • Contact Current Rating : 400 mA @ 32 V ac
  • Actuator Shape : Round
  • Terminal Type : Solder Lug
  • Case Colour : Black
  • CODE No.:820-7587
