Electronic/Electrical Parts and Controll Equipments

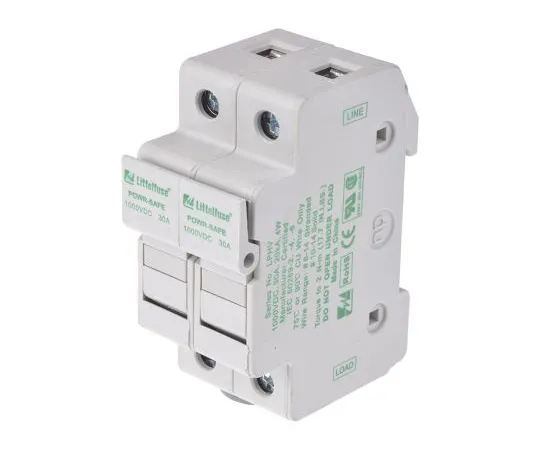

63-5133-63 Littelf*** 30A Rail Mount F*** Holder for 10 x 38 mm F***, 1000V dc LPHV0002Z
Product Description
Product Model: 63-5133-63Product Brand: Littelfuse Feat […]
Contact Us
Product Details
Product Model: 63-5133-63
Product Brand: Littelfuse
Features
- Littelf*** LPHV Series Midget F*** Holders. Littelf*** LPHV series midget f*** holder are providing protection to personnel when installing and removing f***s due to its touch-safe design. The LPHV series is ideal for isolating photovoltaic module strings during maintenance, but is not designed for load break. 1000VDC rating when ***d with Littelf*** SPF or FLU midget f*** series Mountable on 35mm Din Rail Safe and easy installation and removal of f***s - no special f*** pullers or tools required. Compact design RoHS compliant and Lead (Pb) free
Spec
- Quantity：1piece
- F*** Size : 10 x 38 mm
- Current Rating : 30A
- Voltage Rating : 1000V dc
- Number of Poles : 2
- Case Material : Thermoplastic
- Compatible F*** Sizes : 10 x 38 mm
- CODE No.:820-7252
