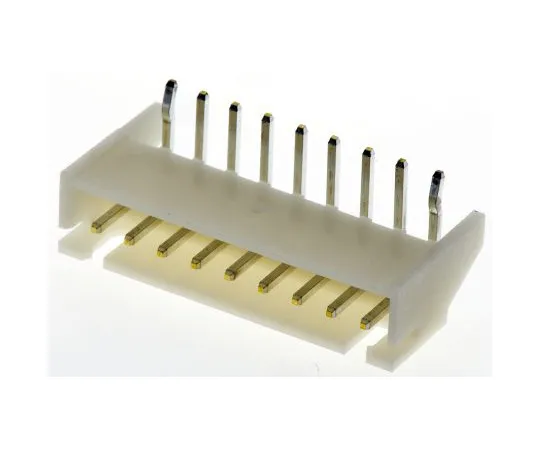

63-5132-92 JST XH S9B, 9 Way, 1 Row, Right Angle PCB Header S9B-XH-A(LF)(SN)
Product Description
Product Model: 63-5132-92Product Brand: JST Features XH […]
Contact Us
Product Details
Product Model: 63-5132-92
Product Brand: JST
Features
- XH Shrouded Header. JST XH Series Box-Type through hole Shrouded Headers are 2.5mm pitch, single row wire to board disconnect crimp style connectors. Available in Top Entry and Side Entry configurations. The wafer material of these XH Series Box-Type Shrouded Headers is PA66 with a rating of UL 94V-0, Posts are Tin plated Brass for these XH Series Box-Type Shrouded Headers. For mating XH Series Receptacle Housings see stock number 820-1611 typical. Features. Wire size of 30AWG to 22AWG Number of contacts varies from 2 to 20 pins Voltage rating of 250VAC/DC Applications Industrial
Spec
- Quantity：1bag(5pieces)
- Series : XH
- Series Number : S9B
- Pitch : 2.5mm
- Number of Contacts : 9
- Number of Rows : 1
- Body Orientation : Right Angle
- Shrouded/Unshrouded : Shrouded
- Mounting Type : Through Hole
- Termination Method : Solder
- Type : Wire to Board
- Voltage Rating : 250 V ac/dc
- CODE No.:820-1608
