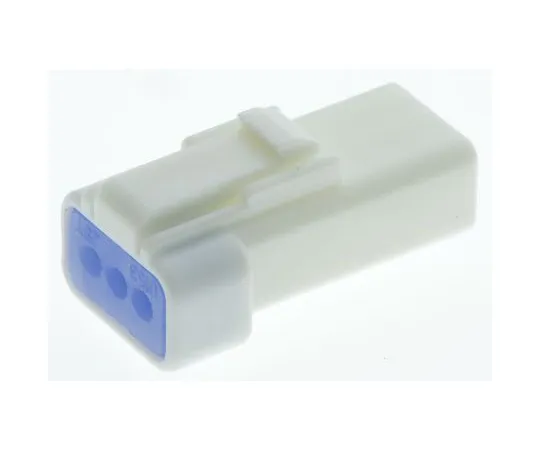

63-5132-16 JST JWPF Male Connector Housing, 2mm Pitch, 3 Way, 1 Row 03R-JWPF-VSLE-S
Product Description
Product Model: 63-5132-16Product Brand: JST Features UL […]
Contact Us
Product Details
Product Model: 63-5132-16
Product Brand: JST
Features
- UL. Tab contact to be mounted in tab housing and receptacle contact to be mounted in receptacle housing. JST JWPF Series Connector Housings. The JWPF Series from JST are a range of connector housings with a 2.00mm pitch. They have been designed to be compact in size, making them ideal for *** in small applications. They have a solid rubber seal at the wire side that provides IP67 waterproof protection. They are ***d in a wide range of applications: for light cluster units and door mirror controls within the automotive industry, appliances such as refrigeration and washing machines, lighting and low current power systems within the rail industry and across all industry for factory automation and lighting purposes. Features and Benefits. 2.0mm pitch Wire to wire configurations and fittings Waterproof connectors Contained facial seal that protects against moisture, dust, dirt and scratches Inner housing lock for secure mating connection Spring action housing to terminal locks for secure contact retention Compact design
Spec
- Quantity:1bag(5pieces)
- Number of Contacts : 3
- Number of Rows : 1
- Pitch : 2mm
- G***er : Male
- Mounting Type : Cable Mount
- Series : JWPF
- For Use With : JWPF Series Receptacle Connector
- Body Orientation : Straight
- Length : 8.7mm
- Width : 5.5mm
- Depth : 16.5mm
- Housing Material : PBT
- CODE No.:820-1309
