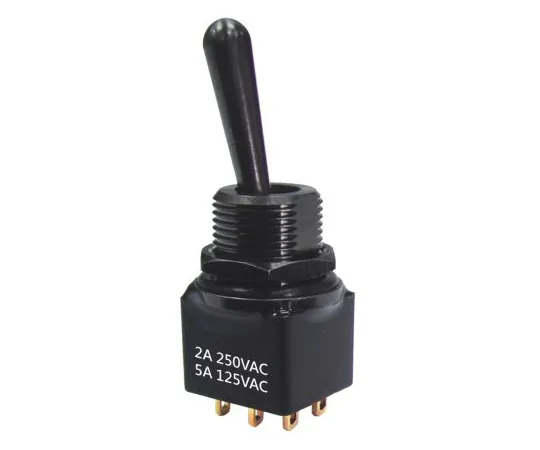

63-5131-74 RS PRO Double Pole Double Throw (DPDT) Toggle Switch, (On)-Off-On, IP67, PCB 820-0514
Product Description
Product Model: 63-5131-74Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5131-74
Product Brand: RS PRO
Features
- IP67 Sealed Miniature Toggle Switches - RS Series. These full sealed switches feature a double shell case for added mechanical strength and high electrical insulation. The switches have a two 'O' ring frontal seals that maintain the seal during operation. The rear of the switch is also fully sealed allowing full protection from flowing water.The contacts are suitable for both low level switching (10mA 50mV - 10μA, 5Vdc minimum) and power applications (3A @ 250Vac).
Spec
- Quantity：1piece
- Contact Configuration : Double Pole Double Throw (DPDT)
- Switch Operation : (On)-Off-On
- Contact Current Rating : 5 A @ 250 V ac
- Mounting Type : PCB
- Terminal Type : Solder Lug
- IP Rating : IP67
- Actuator Length : 18mm
- Actuator Material : Brass
- Contact Resistance : 10mΩ
- Operating Temperature Range : -30 → +85°C
- CODE No.:820-0514
