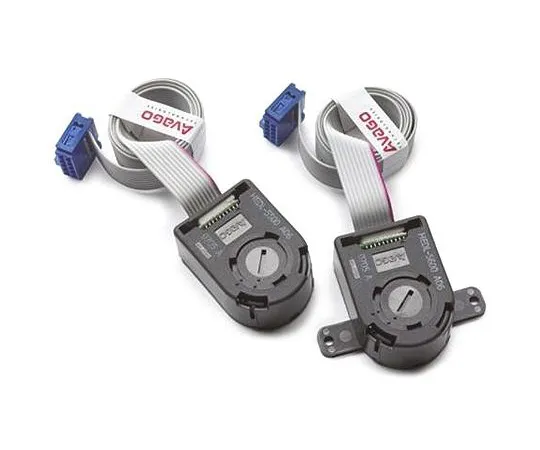

63-5131-12 Broadcom Incremental Encoder 500 ppr 30000rpm Hollow 4.5 → 5.5 V dc HEDL-5540#A12
Product Description
Product Model: 63-5131-12Product Brand: Broadcom Featur […]
Contact Us
Product Details
Product Model: 63-5131-12
Product Brand: Broadcom
Features
- Encoder Line Drivers for HEDS-55xx / 56xx / 9000 / 9100 / 9200 / 9040 / 9140 Series. Encoder Line Drivers for HEDS-55xx / 56xx / 9000 / 9100 / 9200 / 9040 / 9140 Series enhances the performance of encoders when they are ***d in noisy environments or when they are required to drive long distances. The encoder line drivers *** an industry standard IC, AM26C31Q that provides complementary outputs for each encoder channel. Single 5 V supply On-board bypass capacitor
Spec
- Quantity：1piece
- Pulses Per Revolution : 500
- Encoder Technology : Incremental
- Maximum Revolutions : 30000rpm
- Output Signal Type : Push Pull
- Shaft Type : Hollow
- Supply Voltage : 4.5 → 5.5 V dc
- Resolution : 500 CPR
- Steps Per Revolution : 500Steps
- Overall Height : 18.3mm
- Overall Width : 41.1mm
- Overall Depth : 30mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +100°C
- Switching Frequency : 100 kHz
- CODE No.:818-8824
