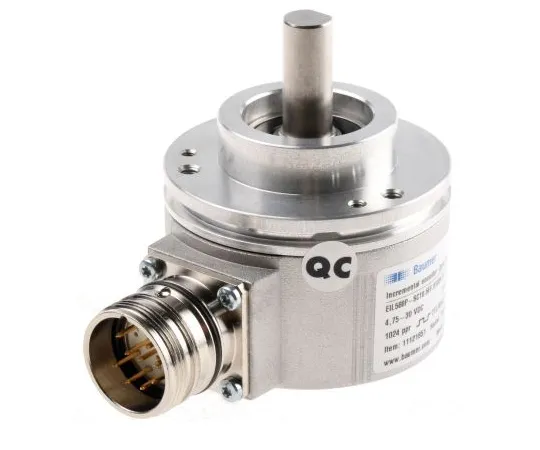

63-5130-37 Baumer Incremental Encoder 65536 ppr 12000rpm Solid 4.75 → 30 V dc EIL580P-SC10.5FF.01024.B
Product Description
Product Model: 63-5130-37Product Brand: Baumer Features […]
Contact Us
Product Details
Product Model: 63-5130-37
Product Brand: Baumer
Features
- EIL580 - Solid shaft. EIL580 incremental encoders with solid shaft, with clamping or synchro flange. Stainless steel solid shaft Die-cast aluminium housing Precise optical sensing Axial, radial or tangential connection High resistance to shock and vibrations 58 mm diameter Programmable output signal level (TTL or HTL)
Spec
- Quantity：1piece
- Pulses Per Revolution : 65536
- Encoder Technology : Incremental
- Maximum Revolutions : 12000rpm
- Output Signal Type : TTL/HTL
- Shaft Type : Solid
- Supply Voltage : 4.75 → 30 V dc
- IP Rating : IP65
- Overall Width : 48 Dia.mm
- Overall Depth : 48mm
- Minimum Operating Temperature : -40°C
- Maximum Operating Temperature : +100°C
- Switching Frequency : ≤160 (HTL) kHz, ≤300 (TTL) kHz
- CODE No.:818-2958
