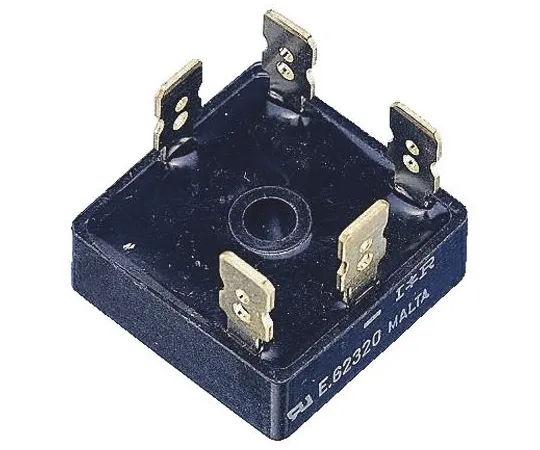

63-5130-02 Vishay VS-26MT20, 3-phase Bridge Rectifier, 25A 200V, 5-Pin D 63 VS-26MT20
Product Description
Product Model: 63-5130-02Product Brand: Vishay Features […]
Contact Us
Product Details
Product Model: 63-5130-02
Product Brand: Vishay
Features
- UL, E300359 approved. Three Phase Bridge Rectifiers with Push-on Terminals, VS-MT Series, Vishay Semiconductor. Three-Phase Bridge Rectifier Power Modules Universal, 3 way terminals: push-on (Fast-on), wrap around or solder High thermal conductivity package, electrically insulated case Center hole fixing foro Chassis Mounting Excellent power/volume ratio
Spec
- Quantity：1piece
- Bridge Type : Three Phase
- Peak Average Forward Current : 25A
- Peak Reverse Repetitive Voltage : 200V
- Mounting Type : Surface Mount
- Package Type : D 63
- Pin Count : 5
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 375A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.26V
- Peak Reverse Current : 100µA
- Length : 28.5mm
- Width : 28.5mm
- CODE No.:817-2415
