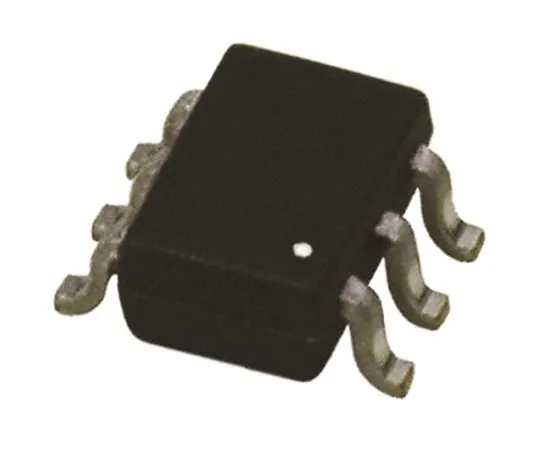

63-5129-89 Nexperia 74LVC2G17GW,125, Dual-Channel Non-Inverting Schmitt Trigger Single Ended Buffer, 6-Pin SC-88 74LVC2G17GW,125
Product Description
Product Model: 63-5129-89Product Brand: Nexperia Featur […]
Contact Us
Product Details
Product Model: 63-5129-89
Product Brand: Nexperia
Features
- 74LVC Family Inverters ; Buffers. Low-Voltage CMOS logic Single gate package Operating Voltage: 1.65 to 5.5 V Compatibility: Input LVTTL/TTL, Output LVCMOS
Spec
- Quantity：1bag(40pieces)
- Logic Family : LVC
- Logic Function : Buffer
- Number of Channels : 2
- Schmitt Trigger Input : Yes
- Input Type : Schmitt Trigger
- Output Type : Single Ended
- Polarity : Non-Inverting
- Mounting Type : Surface Mount
- Package Type : SC-88
- Pin Count : 6
- Maximum High Level Output Current : -32mA
- Maximum Low Level Output Current : 32mA
- Maximum Propagation Delay Time @ Maximum CL : 13.1ns
- Dimensions : 2.2 x 1.35 x 1mm
- Minimum Operating Temperature : -40 °C
- CODE No.:816-8823
