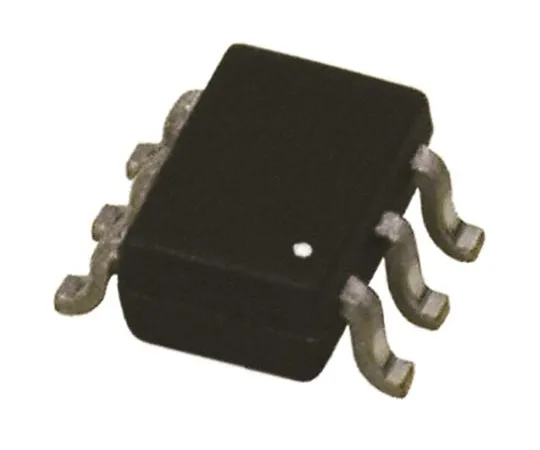

63-5129-88 Nexperia 74LVC1T45GW,125, 1-Channel Transceiver, 3 State, Non-Inverting, 6-Pin SC-88 74LVC1T45GW,125
Product Description
Product Model: 63-5129-88Product Brand: Nexperia Featur […]
Contact Us
Product Details
Product Model: 63-5129-88
Product Brand: Nexperia
Features
- 74LVC Family Inverters ; Buffers. Low-Voltage CMOS logic Single gate package Operating Voltage: 1.65 to 5.5 V Compatibility: Input LVTTL/TTL, Output LVCMOS
Spec
- Quantity：1bag(10pieces)
- Logic Family : LVC
- Logic Function : Transceiver
- Number of Channels per Chip : 1
- Input Type : Single Ended
- Output Type : 3 State
- Polarity : Non-Inverting
- Mounting Type : Surface Mount
- Package Type : SC-88
- Pin Count : 6
- Maximum High Level Output Current : -32mA
- Maximum Low Level Output Current : 32mA
- Maximum Propagation Delay Time @ Maximum CL : 31.8ns
- Dimensions : 2.2 x 1.35 x 1mm
- Height : 1mm
- Minimum Operating Supply Voltage : 1.2 V
- CODE No.:816-8791
