Electronic/Electrical Parts and Controll Equipments

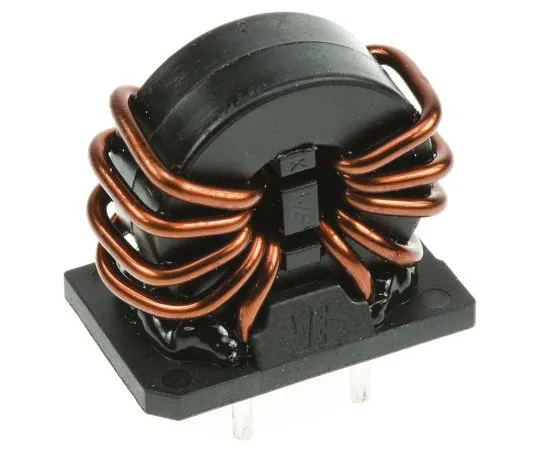

63-5129-76 Wurth 2 x 1 mH -30 → +50% Nano Crystalline Common Mode Choke, Max SRF:1 kHz → 300 MHz, 20A Idc, 2 x 2.4mΩ 7448042001
model:
63-5129-76
brand:
Wurth Elektronik
Product Description
Product Model: 63-5129-76Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-5129-76
Product Brand: Wurth Elektronik
Features
- Wurth WE-CMBNC Series Common Mode Power Line Chokes. Very high permeability nanocrystalline core material Improved isolation throughit's plastic case and winding spacer High and stable inductance values at high temperatures High rated currents Broadband suppression Small size Frequency range: 1 kHz-300 MHz. Applications include:. Power electronics Power line input and output filters Radio interference suppression in motors Suppression for common mode noise
Spec
- Quantity：1piece
- Inductance : 2 x 1 mH
- Maximum DC Current : 20A
- Mounting Type : Through Hole
- Maximum DC Resistance : 2 x 2.4mΩ
- Tolerance : -30 → +50%
- Length : 30mm
- Depth : 19mm
- Height : 32mm
- Dimensions : 30 x 19 x 32mm
- Core Material : Nano Crystalline
- Maximum Self Resonant Frequency : 1 kHz → 300 MHz
- Lead Pitch : 10mm
- Series : WE-CMBNC
- Minimum Operating Temperature : -40°C
- CODE No.:816-4818
