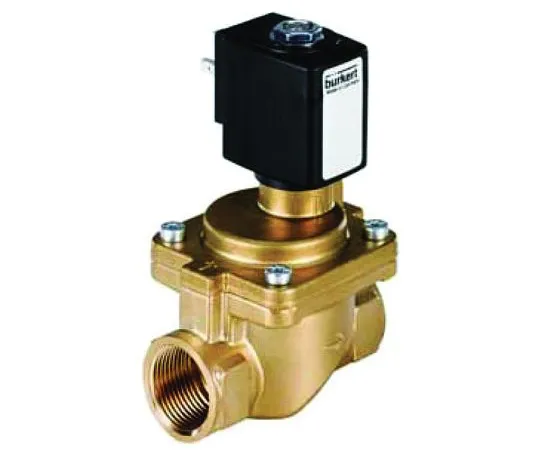

63-5129-50 Burkert Solenoid Valve 221844, 2 port , NC, 24 V dc, 1/2in 221844
Product Description
Product Model: 63-5129-50Product Brand: Burkert Feature […]
Contact Us
Product Details
Product Model: 63-5129-50
Product Brand: Burkert
Features
- DS6281-EV 2/2 Solenoid Valve - Brass Bodied. A 2 way servo assisted solenoid valve suitable for *** with neutral fluids such as compressed air and water. N/C (Normally Closed) and N/O (Normally Open) versions available with NBR (Nitrile Rubber) or FKM (Fluroelastomer) seals. Usable for a variety of applications including heating and refrigeration, water treatment, compressed air and vacuum systems. 0.1 - 4 second response time (dep***ant upon pressure) IP65 Rated (with cable protection) Brass body Quiet operation Water hammer free design Compact installation length NPT / Rc connection ports 0.2 - 16 Bar pressure range
Spec
- Quantity：1piece
- Supply Voltage : 24 V dc
- Number of Ports : 2
- Operation : Solenoid/Air Pilot
- Connection : 1/2 in G
- Connection Size : 1/2in
- Default Valve Position : NC
- Suitable Applications : Compressed Air, Water
- Type : 2/2
- Orifice Diameter : 13mm
- Body Material : Brass
- Maximum Working Pressure : 16 bar
- Operating Temperature Range : -10 → +80 °C
- Minimum Operating Temperature : -10°C
- Maximum Operating Temperature : +80°C
- Thread Standard or Connection Type : G
- CODE No.:816-3152
