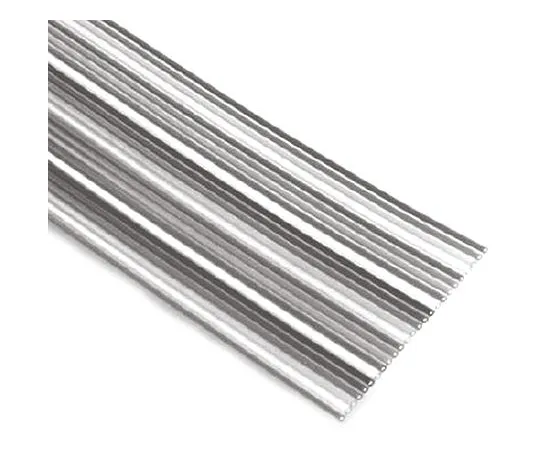

63-5129-28 3M 50 Way Unscreened Flat Ribbon Cable, 63.5 mm Width, Series 3811 3811/50 (100'
Product Description
Product Model: 63-5129-28Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-5129-28
Product Brand: 3M Company
Features
- UL, RoHS. 3M 10 Way Colour 1.27mm Ribbon Cable. Mass termination to various IDC connectors due to the 0.50 in. centres Higher power levels using 26AWG wire Stranded wire providing flexible and ext***ed product life Zippable Colour coded PVC material Tinned stranded copper conductors
Spec
- Quantity：1roll(30m)
- Number of Ways : 50
- Pitch : 1.27mm
- American Wire Gauge : 26
- Width : 63.5 mm
- Cable Shape : Ribbon
- Sheath Colour : Multicoloured
- Voltage Rating : 300 V
- Screened/Unscreened : Unscreened
- Conductor Strand Type : Stranded
- Number of Strands : 7
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +105°C
- Size of Strands : 34
- CODE No.:815-8249
