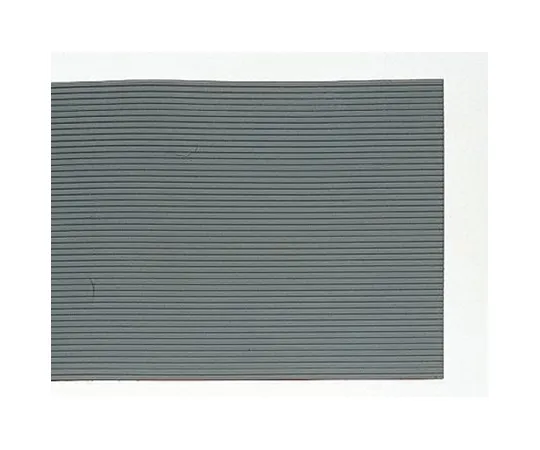

63-5129-26 3M 6 Way Unscreened Flat Ribbon Cable, 7.62 mm Width, Series 3365, 30m 3365/06-100
Product Description
Product Model: 63-5129-26Product Brand: 3M Company Feat […]
Contact Us
Product Details
Product Model: 63-5129-26
Product Brand: 3M Company
Features
- UL, CSA. These cables are not to be regarded as power cables or cables for the direct connection of equipment to mains power supplies. 0.05in (1.27mm) Pitch Ribbon Cables-Type 3365. The 3365 series of grey ribbon cable, 28 awg wire on 0.05in. centres, permits mass termination to a broad line of 3M IDC connectors.,7x36 tinned stranded copper wire provides flexibility and ext***ed product life. First conductor is identified by a red leading edge. Insulation resistance >1x10 10 Ω/3m
Spec
- Quantity：1roll(30m)
- Number of Ways : 6
- Pitch : 1.27mm
- American Wire Gauge : 28
- Reel Length : 30m
- Width : 7.62 mm
- Cable Shape : Ribbon
- Sheath Colour : Grey
- Voltage Rating : 300 V
- Screened/Unscreened : Unscreened
- Conductor Strand Type : Stranded
- Number of Strands : 7
- Minimum Operating Temperature : -20°C
- Maximum Operating Temperature : +105°C
- Size of Strands : 36
- CODE No.:815-8003
