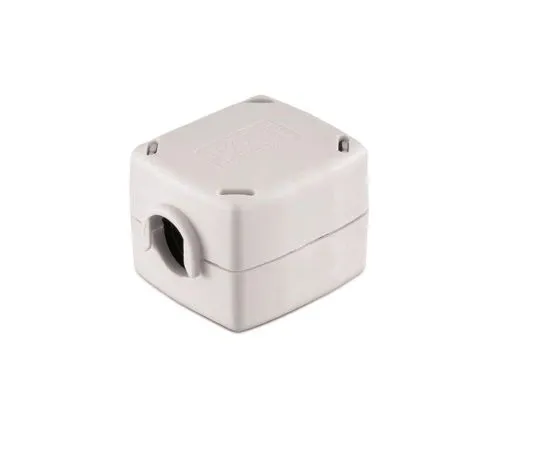

63-5128-49 Wurth Elektronik Openable Ferrite Sleeve, 42.2 x 33.6 x 29.5mm, For General Application, Safety Relevant Application, 74271221S
model:
63-5128-49
brand:
Wurth Elektronik
Product Description
Product Model: 63-5128-49Product Brand: Wurth Elektroni […]
Contact Us
Product Details
Product Model: 63-5128-49
Product Brand: Wurth Elektronik
Features
- Split Ferrite Sleeves in Plastic Shell with Snap-In Lock. STAR-TEC snap ferrites from Wurth Elektronik feature cable pinch protection, and are easy to open for measurement purposes. A prefixing cable system ensures a simple cable assembly process and a security lock prevents unauthorised removal of the ferrite from the cable. Please ****, the safety key (74271) is sold separately. Refer to < 815-0021') 815-0021/ to order the key. Suitable applications for these ferrite sleeves include internal and external computer data and power cables. Easy to remove, and featuring straightforward installation, these ferrites are ideal for cables that are difficult to access. Housing has no projecting parts Key sold separately UL94-V0 plastic case
Spec
- Quantity:1piece
- Series : STAR-TEC
- Application : General Application, Safety Relevant Application
- Material : 4W620
- Key : No
- Openable : Yes
- Outer Dimensions : 42.2 x 33.6 x 29.5mm
- Aperture Diameter : 10.5mm
- Number of Apertures : 1
- Outer Depth : 33.6mm
- Outer Height : 29.5mm
- Outer Width : 42.2mm
- CODE No.:815-0002
