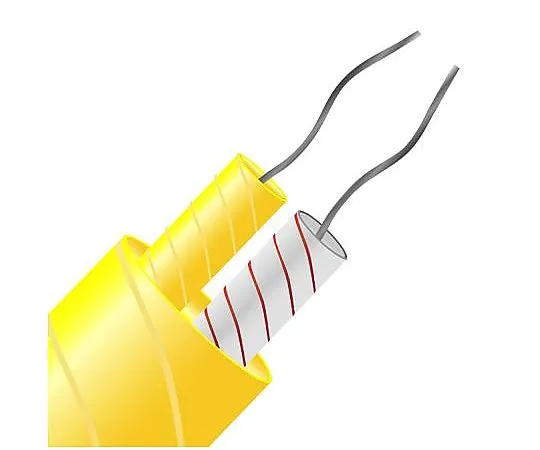

63-5127-71 Thermocouple & Extension Wire Type K, -60 → +350 °C 2 Core Glass Fibre Sheath 100m 814-0064
Product Description
Product Model: 63-5127-71Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5127-71
Product Brand: RS PRO
Features
- Available in different reel lengths. Glassfibre Flat Pair Thermocouple Cables. Tolerance Class 2 to IEC-584 Insulation rating -60°C to 350°C (short periods up to 400°C) Colour code (cores & jacket) to IEC-584-3. Glassfibre insulated flat pair cables in thermocouple types; K, J N or T. Types KX & TX are available in solid 1/0.3mm, JX in 7/0.2mm stranded conductors. Glassfibre insulated flat pair construction, with glassfibre jacket and silicone varnish throughout. The thermocouple cables are also available with a stainless steel overbraid for added protection.
Spec
- Quantity：1piece
- Thermocouple Type : K
- Number of Cores : 2
- Length : 100m
- Minimum Operating Temperature : -60°C
- Maximum Operating Temperature : 350°C
- Core Strands : 1/0.3 mm
- Insulation Material : Glass Fibre
- Cable Shape : Flat Pair
- Number of Strands : 1
- Size of Strands : 0.3 mm
- Standards Met : ANSI MC96.1, RoHS Compliant
- CODE No.:814-0064
