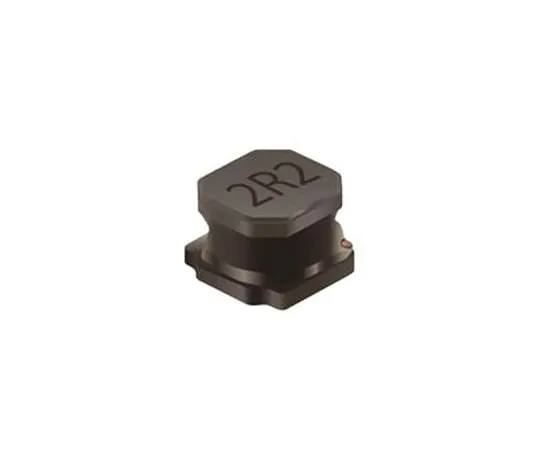

63-5127-47 Bourns SRN5040 Series Shielded Wire-wound SMD Inductor with a Ferrite Core, 10 μH ±20% Wire-Wound 2.1A Idc SRN5040-100M
Product Description
Product Model: 63-5127-47Product Brand: Bourns Features […]
Contact Us
Product Details
Product Model: 63-5127-47
Product Brand: Bourns
Features
- SRN5040 Series Semi Magnetically Shielded Power Inductors. SRN5040 Series have a semi-shielded construction Semi-shielded construction Inductance range: 1.5 to 47 μH Rated current up to 3.6 A Applications in DC/DC converters, Notebook computers, Digital video cameras, HDDs, Cellphones, Televisions and LCD displays
Spec
- Quantity：1bag(10pieces)
- Inductance : 10 μH
- Maximum DC Current : 2.1A
- Length : 5mm
- Depth : 5mm
- Height : 4mm
- Dimensions : 5 x 5 x 4mm
- Shielded : Yes
- Tolerance : ±20%
- Maximum DC Resistance : 68mΩ
- Series : SRN5040
- Core Material : Ferrite
- Minimum Operating Temperature : -40°C
- CODE No.:813-5680
