Electronic/Electrical Parts and Controll Equipments

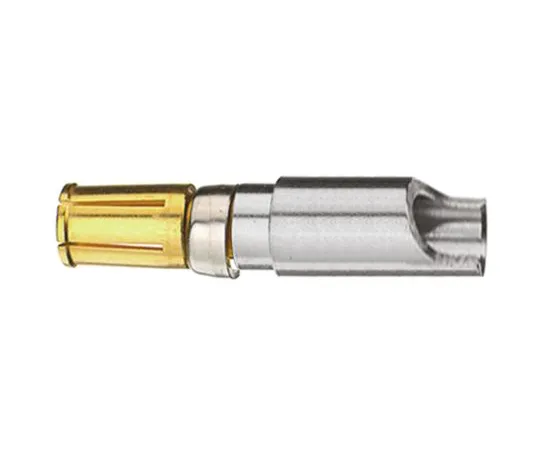

63-5126-78 FCT - A MOLEX COMPANY FMP Series Female Solder D-Sub Connector Power Contact, Gold over Nickel Plated Socket, 12 FMP007S105
model:
63-5126-78
brand:
FCT - A MOLEX COMPANY
Product Description
Product Model: 63-5126-78Product Brand: FCT - A MOLEX C […]
Contact Us
Product Details
Product Model: 63-5126-78
Product Brand: FCT - A MOLEX COMPANY
Features
- G***er details relate to centre conductor. Power/Coaxial Contacts. A range of Contacts designed for *** in mixed layout Connector shells including Power, Coaxial and High Voltage types. PCB holes for coax plug and socket: 4 holes 1.3mm dia. on 5.08mm ctrs, plus centre hole 1.3mm dia. PCB mounting inserts are not suitable for *** with right angle PCB connectors. PCB holes for 20A and 40A PCB contacts are 2.85mm and 3.75mm respectively. Snap-fit contacts removed with tool, stock no. ; 485-221 485-221 'M' DIN41612 connectors may also be ***d with mixed layout D shells 50 Ohm Coaxial contacts (straight) accept RG178B/U ; RG174A/U cables. Use crimp tool (stock no. ; 470-099 470-099 ) for the braid and solder for the centre contact. Contacts removed with tool, stock no. ; 485-221 485-221
Spec
- Quantity：1piece
- G***er : Female
- Contact Material : Copper Alloy
- Contact Plating : Gold over Nickel
- Maximum Contact Resistance : 1mΩ
- Wire Size : 12 → 8 AWG
- Contact Type : Socket
- Series : FMP
- Current Rating : 40A
- Termination Method : Solder
- Length : 22.8mm
- Series Number : FMP007
- CODE No.:812-6428
