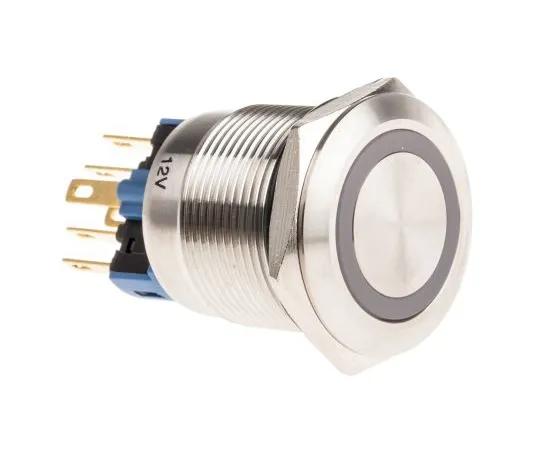

63-5125-55 RS PRO Single Pole Double Throw (SPDT) Latching Blue LED Push Button Switch, IP65, IP67, 22 (Dia.)mm, Panel Mount, 12V 811-8483
Electronic/Electrical Parts and Controll Equipments

63-5125-55 RS PRO Single Pole Double Throw (SPDT) Latching Blue LED Push Button Switch, IP65, IP67, 22 (Dia.)mm, Panel Mount, 12V 811-8483

model: 63-5125-55
brand: RS PRO

Product Description

Product Model: 63-5125-55Product Brand: RS PRO Features […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5125-55
Product Brand: RS PRO

Features

  • Anti Vandal 22mm Push Button Switches. This high-quality anti vandal push button switch from our own brand RS PRO is designed to withstand physical attack and it is suitable for any application that requires above panel resistance to water and dust access such as public kiosks, outside panels or open dashboards. Operating life of 50,000 cycles Operating force of 4N max Stainless steel construction Copper alloy, silver plated contact Brass, silver plated terminal Front panel protection to IP67. RS PRO RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards; they ‘re only given the RS PRO Seal of Approval if we ‘re confident of their exceptional quality, which means you can be confident too.

Spec

  • Quantity:1piece
  • Switch Operation : Latching
  • Mounting Type : Panel Mount
  • Illuminated : Yes
  • Contact Configuration : Single Pole Double Throw (SPDT)
  • Panel Cut Out Size : 22 (Dia.)mm
  • Panel Cut Out Diameter : 22mm
  • LED Colour : Blue
  • IP Rating : IP65, IP67
  • Actuator Colour : Silver
  • Voltage Rating : 12V
  • Contact Current Rating : 5 A @ 250 V ac
  • Actuator Shape : Flat
  • Terminal Type : Quick Connect
  • Actuator Type : Flat
  • CODE No.:811-8483
