63-5123-61 Arcol 27Ω 35W Fixed Resistor ±5% ±100ppm/°C AP836 27R J 100PPM
Product Description
Product Model: 63-5123-61Product Brand: Arcol Features […]
Contact Us
Product Details
Product Model: 63-5123-61
Product Brand: Arcol
Features

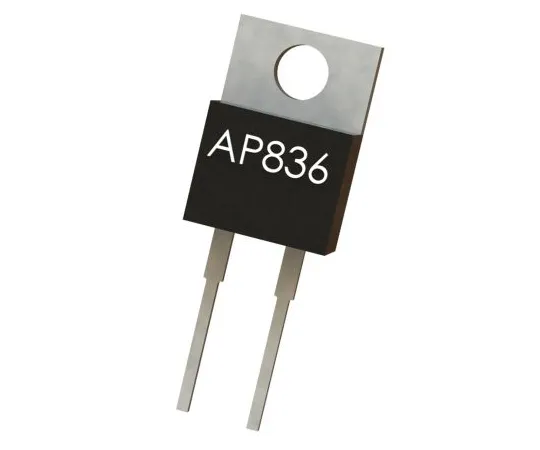

- AP836 Series 35 Watts TO-220 High Power Resistors. The AP836 series Non-inductive 35 Watt high power T0220 resistor pack with a very low thermal resistance. Applications for the AP836 series include:- High frequency emitter circuits in switching power supplies; voltage regulation; low energy pulse loading. 35 Watts at 25˚C case temperature on heat sink (Using thermal grease) Single Moulded case for protection Easy to mount to heat sink via single screw mounting hole Electrically isolated case
Spec
- Quantity：1piece
- Resistance : 27Ω
- Power Rating : 35W
- Tolerance : ±5%
- Technology : Thick Film
- Series : AP836
- Package/Case : TO-220
- Lead Pitch : 5.33mm
- CODE No.:810-0997
