63-5122-29 270mΩ 2512 Metal Strip Current Sensing Surface Mount Fixed Resistor ±5% 2W - RLP73K3AR27JTE RLP73K3AR27JTE
model:
63-5122-29
brand:
TE Connectivity
Product Description
Product Model: 63-5122-29Product Brand: TE Connectivity […]
Contact Us
Product Details
Product Model: 63-5122-29
Product Brand: TE Connectivity
Features

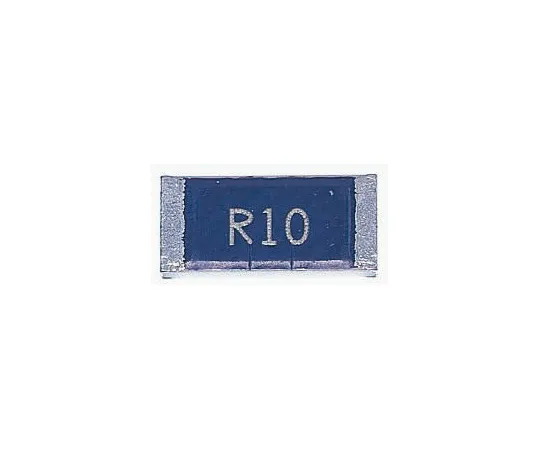

- RLP73 Series SMD High Power. The TE Connectivity RLP73 Series is a high power, low ohmic shunt resistor that acts as a current sensor. Designed with a special metal glaze resistive element, it has a nickel barrier layer beneath the solder to prolong terminal life. Applications for the RL73 series include: Audio; Communications; Automotive; Low voltage power supplies; Power management. Power ratings of up to 2W at 70°C Resistance values down to 47mΩ Ideal for current detection Sizes from 0805 to 2512
Spec
- Quantity：1bag(20pieces)
- Resistance : 270mΩ
- Technology : Metal Strip
- Package/Case : 2512 (6432M)
- Tolerance : ±5%
- Power Rating : 2W
- Temperature Coefficient : ±200ppm/°C
- Series : RLP73
- Minimum Operating Temperature : -55°C
- Maximum Operating Temperature : +155°C
- CODE No.:807-7238
