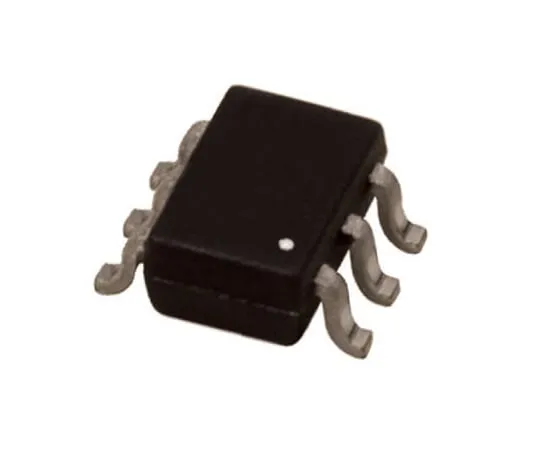

63-5119-41 ON Semiconductor NL27WZ16DTT1G, Dual-Channel CMOS, Single Ended Buffer, 6-Pin TSOP NL27WZ16DTT1G
model:
63-5119-41
brand:
ON Semiconductor
Product Description
Product Model: 63-5119-41Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5119-41
Product Brand: ON Semiconductor
Features
- NL27W Series, ON Semiconductor. CMOS Logic gates with LVTTL compatible inputs and outputs, offering higher speed and greater drive capability than 74LCX devices. Wide 1.65 to 5.5V operating supply LVCMOS Compatible 24mA source/sink capacity at 3.0V
Spec
- Quantity：1set(50pieces)
- Logic Family : LCX
- Logic Function : Buffer
- Number of Channels : 2
- Schmitt Trigger Input : No
- Input Type : Single Ended
- Output Type : CMOS, Single Ended
- Mounting Type : Surface Mount
- Package Type : TSOP
- Pin Count : 6
- Maximum High Level Output Current : -32mA
- Maximum Low Level Output Current : 32mA
- Maximum Propagation Delay Time @ Maximum CL : 10.2 ns @ 15 pF
- Dimensions : 3.1 x 1.7 x 1mm
- Minimum Operating Supply Voltage : 1.65 V
- CODE No.:805-1778
