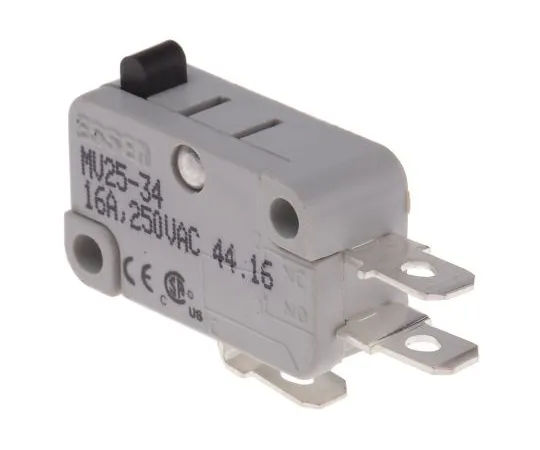

63-5117-87 SPDT Push Button Microswitch, 16 A @ 250 V ac 804-6234
Product Description
Product Model: 63-5117-87Product Brand: RS PRO Features […]
Contact Us
Product Details
Product Model: 63-5117-87
Product Brand: RS PRO
Features
- IEC 1058-1. Miniature Micro Switch 16A. V3 casing switches that are ideal for many heavy duty applications including automotive, v***ing machines, telecommunication equipment, security products and instrumentation. Positive snap action Long mechanical and electrical life Fine silver contacts
Spec
- Quantity：1piece
- Actuator Type : Push Button
- Terminal Type : Quick Connect
- Contact Current Rating : 16 A @ 250 V ac
- Contact Configuration : SPDT
- Operating Force : 400 gms
- Minimum Operating Temperature : -55 (Environmental)°C
- Maximum Operating Temperature : +85°C
- Switch Housing : V3 Housing
- Contact Material : Silver on Copper
- Case Material : Glass Filled Thermoplastic
- Mechanical Life : 10000000Operations
- Release Force : 80gf
- Operating Temperature Range : -55 → +85 (Environmental)°C
- CODE No.:804-6234
