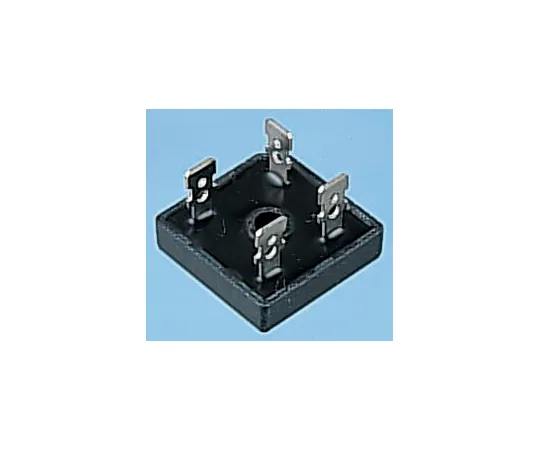

63-5117-15 ON Semiconductor GBPC3504, Bridge Rectifier, 35A 400V, 4-Pin GBPC GBPC3504
model:
63-5117-15
brand:
ON Semiconductor
Product Description
Product Model: 63-5117-15Product Brand: ON Semiconducto […]
Contact Us
Product Details
Product Model: 63-5117-15
Product Brand: ON Semiconductor
Features
- UL E-258596. Bridge Rectifiers with Push-on Terminals, GBPC 35 Series, Fairchild Semiconductor. High Current 35 Amperes Glass Passivated junction Integrally molded heat-sink provided very low thermal resistance for maximum heat dissipation Fast-on Terminals
Spec
- Quantity：1bag(2pieces)
- Bridge Type : Single Phase
- Peak Average Forward Current : 35A
- Peak Reverse Repetitive Voltage : 400V
- Mounting Type : Screw Mount
- Package Type : GBPC
- Pin Count : 4
- Diode Technology : Silicon Junction
- Configuration : Single
- Peak Non-Repetitive Forward Surge Current : 400A
- Maximum Operating Temperature : +150 °C
- Minimum Operating Temperature : -55 °C
- Peak Forward Voltage : 1.1V
- Peak Reverse Current : 500µA
- Length : 29mm
- Dimensions : 29 x 29 x 11.23mm
- CODE No.:803-1926
