63-5116-61 STMicroelectronics STM32 Nucleo-64 MCU Development Board NUCLEO-L152RE NUCLEO-L152RE
Electronic/Electrical Parts and Controll Equipments

63-5116-61 STMicroelectronics STM32 Nucleo-64 MCU Development Board NUCLEO-L152RE NUCLEO-L152RE

model: 63-5116-61
brand: STMicroelectronics

Product Description

Product Model: 63-5116-61Product Brand: STMicroelectron […]

Contact Us

Hotline

18866622123

WeChat

WeChat ID: 18866622123

WeChat QR Code

Product Details

Product Model: 63-5116-61
Product Brand: STMicroelectronics

Features

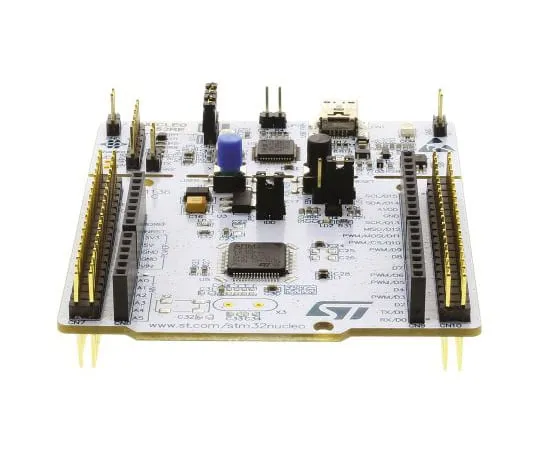

  • NUCLEO-L152RE Nucleo-64 Development Board. This STM32 Nucleo-64 board provides an affordable and flexible way for ***rs to build prototypes with the ultra-low power STM32L152RET6 microcontroller. Arduino Uno v3 and ST morpho headers expand the functionality with a choice of Shields. The integrated ST-LINK/V2-1 debugger/programmer comes with the STM32 comprehensive software HAL library, software examples, as well as direct access to the ARM mbed on-line resources. Supported by wide choice of Integrated Development Environments (IDEs) including IAR, Keil, GCC-based and ARM mbed. STM32L152RET6 32MHz Cortex-M3 core microcontroller with 512KB ECC Flash memory, 80KB RAM, 16KB ECC EEPROM Serial communication interfaces: USART, SPI, I²C, I²S, USB 23 x Capacitive sensing channels LCD driver for up to 4 x 32 or 8 x 28 segments CRC calculation unit 96-bit unique ID Arduino Uno v3 connectivity support ST morpho extension pin headers for access to all GPIO On-board ST-LINK/V2-1 debugger/programmer with SWD connector Flexible board power supply 3 x LEDs: USB communication, Power and User Reset and User pushbuttons ARM mbed™ Enabled (see http://mbed.org)

Spec

  • Quantity:1piece
  • Classification : Development Board
  • Kit Name : STM32 Nucleo-64
  • Technology : MCU
  • Device Core : ARM Cortex M3
  • Processor Family Name : STM32L1
  • Processor Part Number : STM32L152RET6
  • Processor Type : MCU
  • CODE No.:802-9428
